P4/P6/P8/P10 LED Crystal Film Screen

 Tips：Click to zoom in

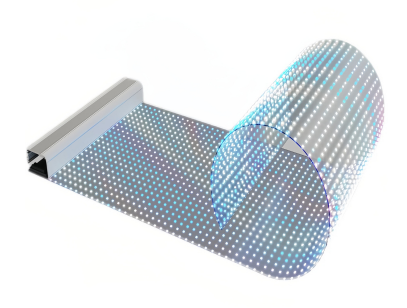

Highly Flexible

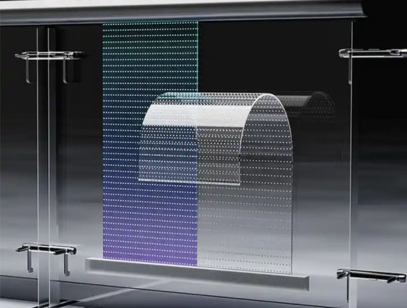

sticker glass
Customizable Cutting
Crystal Film Screen

Overview

  • Transparent LED film screen module meets the horizontal and vertical curved scene mounting. Adhered to the glass surface, very hidden and see-through, to maximize the retention of the original scene space visual effect

  • Key Features

    Safe and convenient:

    No structural support required, just stick directly to the glass

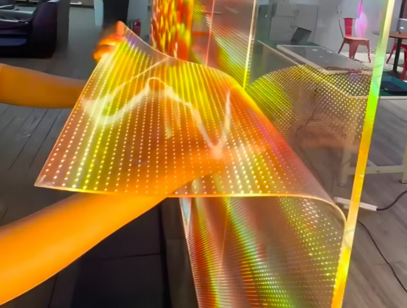

    Highly Flexible:

    The product can be bent or rolled up or down significantly and is not easily damaged

    Super thin and light design:

    The thickness of the panel is only 1.93mm, and the weight is 3.5kg/㎡

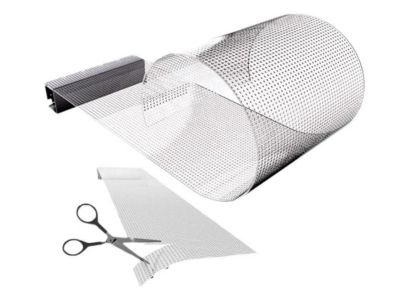

    Customizable Cutting Available

    Product can be customized according to on-site needs, or the panels can be directly cut.




      • Installation

              • rear-maintenance/ sticker glass




    Applications

          • Brand Chain:Jewelry, business halls, 4S stores, hotels, shoes and clothing stores, luxury stores, etc.

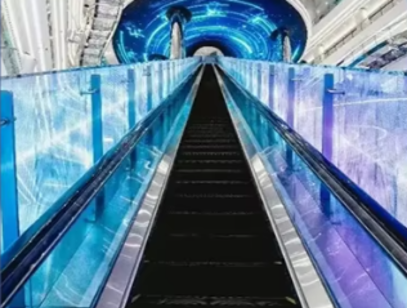

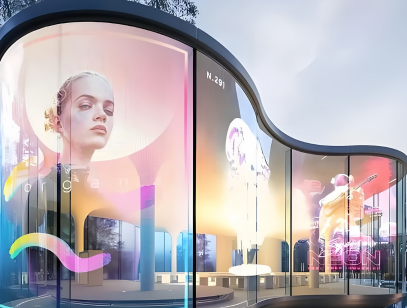

            Commercial:complex:Site seeing elevator, glass curtain wall, shopping mall atrium canopy, glass guardrail, etc


            Creative Display:Science and technology museums, museums,
            theaters, exhibition halls, automotive glass, etc.



            Transportation Media Center:Airport, high-speed train, bus station ,Subway station etc.


    Technical Specification
    •
    • ITEM NAME LED Crystal Film Screen
      Pixel Pitch P4-8 P6 P8 P10
      Lamp(mm) 1314 (RGB) 2121(RGB) 2121(RGB) 2121(RGB)
      Pixel Density（dots/㎡） 31250dots/sqm 27778dots/sqm 15625dots/sqm 10000dots/sqm
      Scanning Mode static static static static
      Module size（mm） 960*240mm 960*240mm 960*240mm 960*240mm
      Module resolution 240*30 160*40 120*30 96*24
      Cabinet size （mm） 960*480mm (customized ) 960*480mm (customized ) 960*480mm (customized ) 960*480mm (customized )
      Cabinet resolution 240*60 160*80 120*60 96*48
      Transparent ≤60% ≤65% 70% 75%
      Maximum power consumption/㎡ ≤800W ≤800W ≤800W ≤800W
      Average power consumption/㎡ ≤260W ≤260W ≤260W ≤260W
      Brightness <4500CD/㎡ <4500CD/㎡ <4500CD/㎡ <4500CD/㎡
      Refresh rate ≤7680HZ ≤7680HZ ≤7680HZ ≤7680HZ
      Weight(kg)/cabinet <3.5kg <3.5kg <3.5kg <3.5kg
      Visual angle 160°/160° 160°/160° 160°/160° 160°/160°
      IP grade IP53 IP53 IP53 IP53
      Color temperature  2000-9500 2000-9500 2000-9500 2000-9500
      Cabinet material Aluminum
      Temperature-operating ﹣10℃～60℃
      Humidity-operating 10%～85%
      Input voltage AC110-240V 50/60HZ
      Installation method rear-maintenance/ sticker glass
      Cabinet Weight <3.5kg/sqm
      Control System Novastar/Colorlight/Huidu


    • Case
