Product Overview
Outdoor Street Pole Led Light Display Board bring new value to the city.Using existing facilities and locations, these displays can be installed quickly without structure body.The displays can be easily managed through 3G/4G/WiFi and other ways.
Compact & Versatile Design

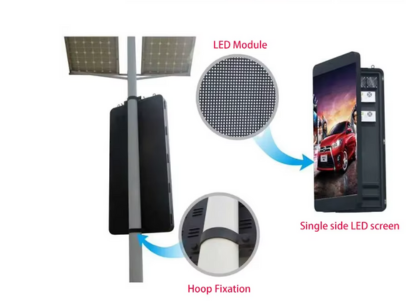

1)★Compatible Modules size:
320mm ×160mm LED modules.
★Pixel Pitch Options:P3.076 P4
★Display Dimensions:640× 960 ×100mm (W × H × D)
640×1280 ×100mm(W × H × D)
Cabinet Dimensions: 740× 1060 ×100mm (W × H × D)
740×1380 ×100mm(W × H × D)
2)★Compatible Modules size:
200mm ×200mm LED modules.
★Pixel Pitch Options:P3.33 P3.84
Display Dimensions: 600× 1000×100mm (W × H × D)
600×1200 ×100mm(W × H × D)
★Cabinet Dimensions:700× 1100 ×100mm (W × H × D)
700×1300 ×100mm(W × H × D)
Key Features
★High Brightness & Waterproof:
5500-6000cd/sqm Optimized for outdoor visibility under direct sunlight
High waterproof grade: independent box design three-layer waterproof structure to achieve IP65 scale
★Signgle sided or Double sided:
Front access or sided access
★Support multiple Control Mode
The device comes standard with WiFi, Ethernet port, HDMI (optional), and wireless 4G(optional)
★ Easy to maintain：
All cases designed to open the door no more than three locks, hidden door lock design
★Box Design：
Adapt to the light pole design, the surface of paint treatment resistant to harsh environment, anti-corrosion anti-oxidation
Advantages:
Easy Installation
Lightweight (≤28kg/cabinet) & modular design.
Front maintenance & slim profile (120mm)
Super Brightness
≥5500 nits for sunlight-readable clarity.
Auto brightness adjustment (day/night modes)

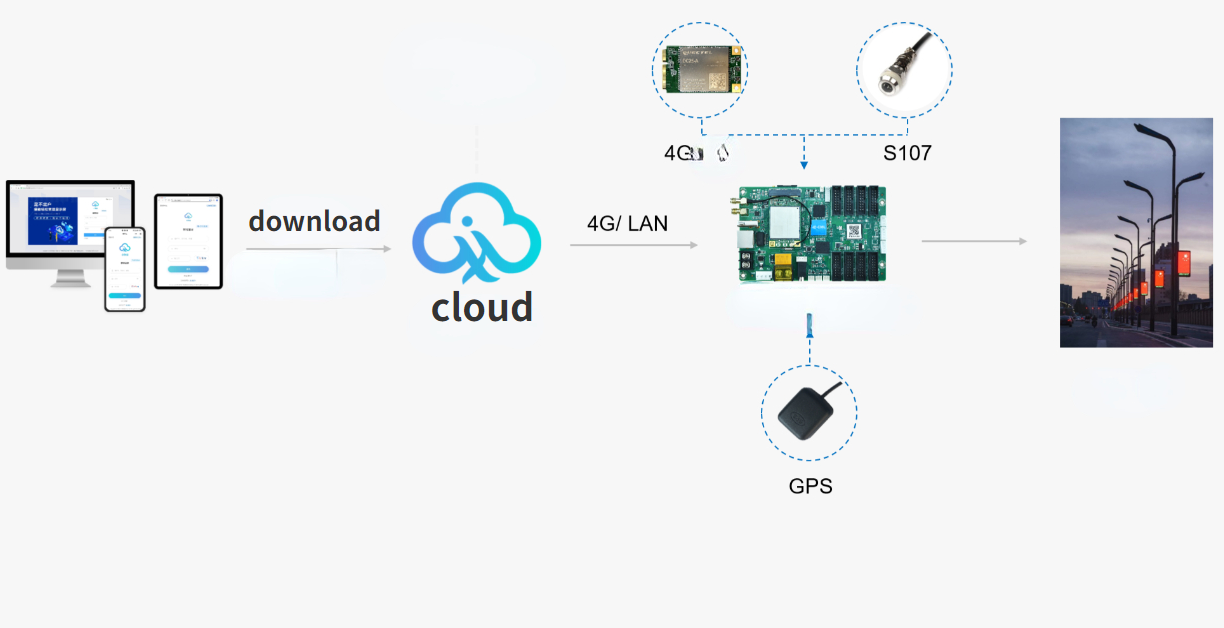

Smart Control
Remote updates via Wi-Fi/4G/Ethernet.
Applications

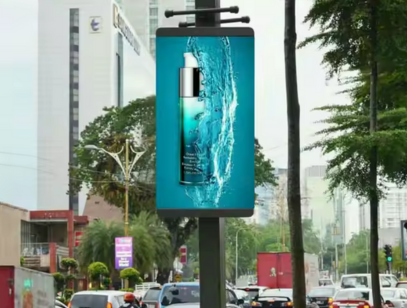

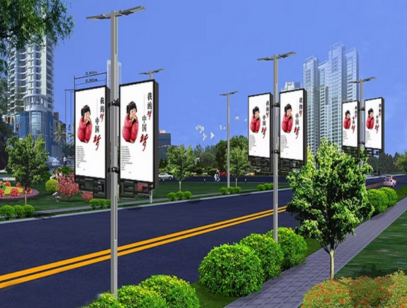

Street light/pole-mounted advertising.

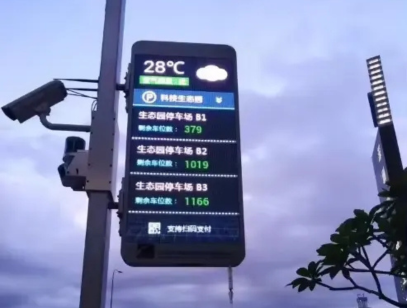

Transportation hubs, parking guidance.
Public event displays.
