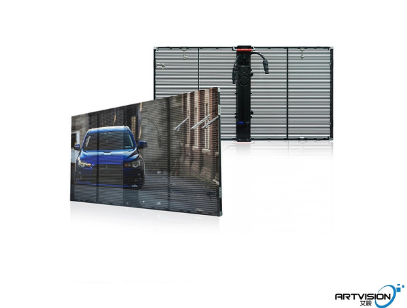

P3.91-7.82 GOB transparent led display

 Tips：Click to zoom in
GOB transparent led display
P3.91-7.82 transparent led display
P3.91-7.82 GOB transparent led display
Product Features
P3.91-7.82 GOB transparent led display

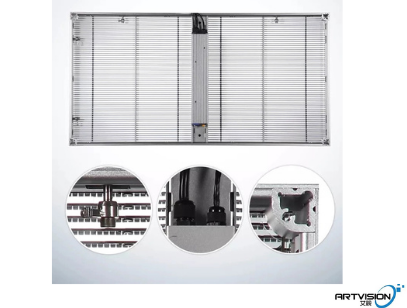

✅ The screen is thin and supports front and rear maintenance. The unit light bar screen can be removed separately for easy and quick maintenance.
✅ Middle fast lock:in order to keep flatness and quick assemble,fast lock can save much time and high level flatness.
✅ Simple installation :hanging or wall fixed mounting The weight of LED transparent screen is only 15kg/㎡, which is light. There is no need to build steel structure.
✅Different cabinets size by screws. 500*1000mm   and  500*500mm
Applications

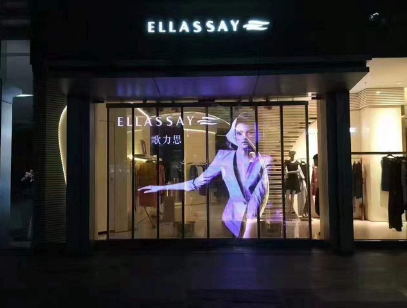

 P3.91-7.82  transparent led cabinet widely used in shop center ,night bar,glass curtain hall, glass window,auto store,chain stores and so on
Technical Index
P3.91-7.82 GOB transparent led display
Led module Pixel Pitch 3.91-7.82mm
Pixel Configuration SMD2121
Module Resolution 32*128dots
Module Pixles 4096dots
Module Size 125*500mm
LED cabinets Cabinet Size(W*H*D) 500*1000*75mm
Cabinet Resolution 64*256
Module Quanity 8 pcs
Cabinet Pixels 16384
Material Aluminum
whole led display Brightness ≥2000cd/㎡
Pixel Density 32768dots/m2
Driving Method 1/8 scan constant current
View Angle 120H,120V
Optimal Viewing Distance ≥4meters
Brightness Control Red,Green and Blue 4096 Grade/Each
Fresh requency ≥3840Hz
Frame Frequency 50Hz
Input Voltage AC240V/50Hz
Defects Rate ≤0.00001
Power Consumption Max:180W/Cabinet   Average:90W/Cabinet
Screen weight 7.5KG/Cabinet
MTBF >10,000 hours
Life span ≥100,000 hours
Protective Grade IP53
Temperature-operating ﹣35℃～50℃
Humidity-operating  10%～95%
Color depth 16 bit
Controlling system Nova or Colorlight(Sending Card,Receiving Cards and Hubs)
Operating System  Windows XP/7/8/10

Installation
Hanging or fixed
