Product Features
|

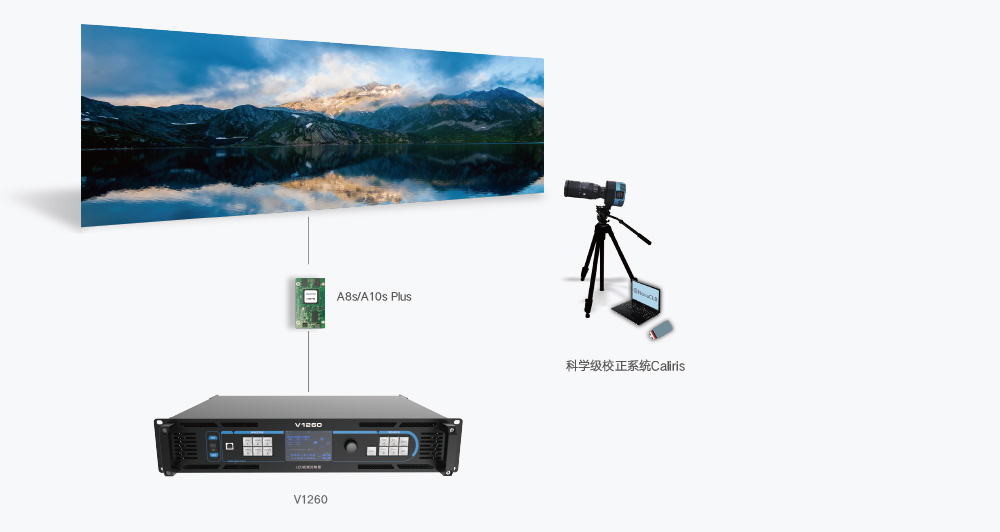

★COB Technology Excellence Superior Durability: Chip-on-Board (COB) packaging ensures robust protection against moisture, dust, and physical impact, ideal for 24/7 operation. Enhanced Visuals: Higher contrast ratio and wider viewing angles (up to 170°) with seamless pixel transitions, perfect for control rooms, studios, and luxury retail. Thermal Efficiency: Advanced heat dissipation extends lifespan by 30% compared to traditional SMD displays. ★Cable free design Unmatched Stability: Cable-free design is to put all the connection cables integrated in the cabinet or module, no need cables connection in the installation , just put all the modules and cabinets pluged with the interface Simplified Maintenance: Modular design allows quick panel replacement without disrupting the entire display. ★ HDI PCB design High Density Interconnector Make LED module durable and reduce the overheat problem ★Color Calibration It can eliminate color difference perfectly and create a more exquisite, more transparent and better view. |

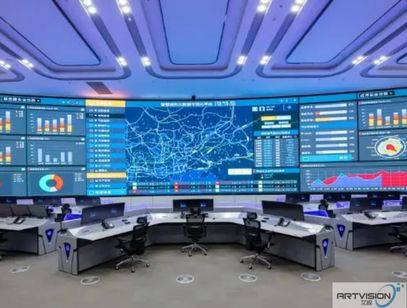

Broadcast,TV studio,Airport,Exhibition,Conference,Military Monitor,Star Hotel,Metro station,Luxury store
Technical
Technical
| Item | Technical parameter | |

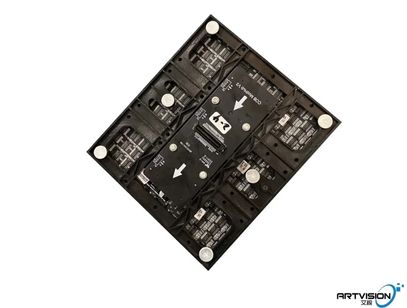

| Led Module | Dimension Size | （W）150*168.75mm（H） |
| Pixel pitch | 0.9375mm | |
| Pixel Density | 113 7778/ M2 | |
| Drive type | 1/40 Scan | |
| LED specification | COB | |
| Pixel resolution | （W）160*180（H） | |
| Max power | 22W | |
| Panel current | 4-4.5A | |
| Panel weight | 0.15KG | |

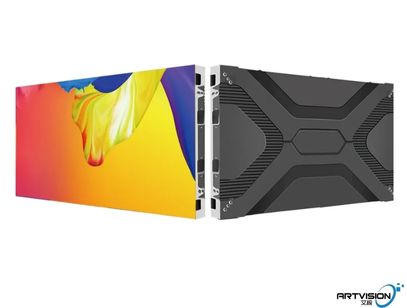

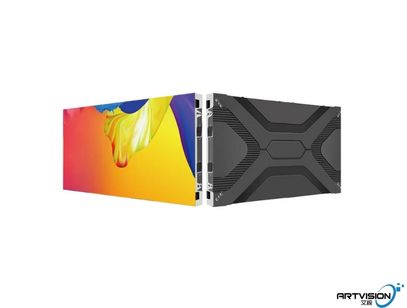

| LED Cabinet | LED cabinet size | 600*337.5mm |
| Cabinet resolution | 640*360dots | |
| Quantity of panel(pcs/sqm) | 8 | |
| Cabinet design | Cable free design+front access | |
| Material | Die-casting | |
| Received card | A10S-plus | |
| Panel power supply | 4.2V40A | |
| Technical Parameter | Driving device | 1065 Constant current drive |
| Refresh frequency | 3840HZ | |
| Display color | 4096*4096*4096 | |
| Brightness | 600cd/M2 | |
| IP Protection | IP65 in front ,IP31 in back | |
| Best viewing angle | Horizontal >140 Vertical>140 | |
| Best viewing distance | 1-20M | |
| Working temperature | -80 | |
| Panel power supply | 4.2V40A | |
| Screen power supply | 220/110 VAC/50HZ+_10% | |
| Max power | <700W/m² | |
| Average power | 350W/m² | |
| Power quantity | 200W/8PCS | |
| Life span | 100000Hours | |
| Communication distance | <100M | |
