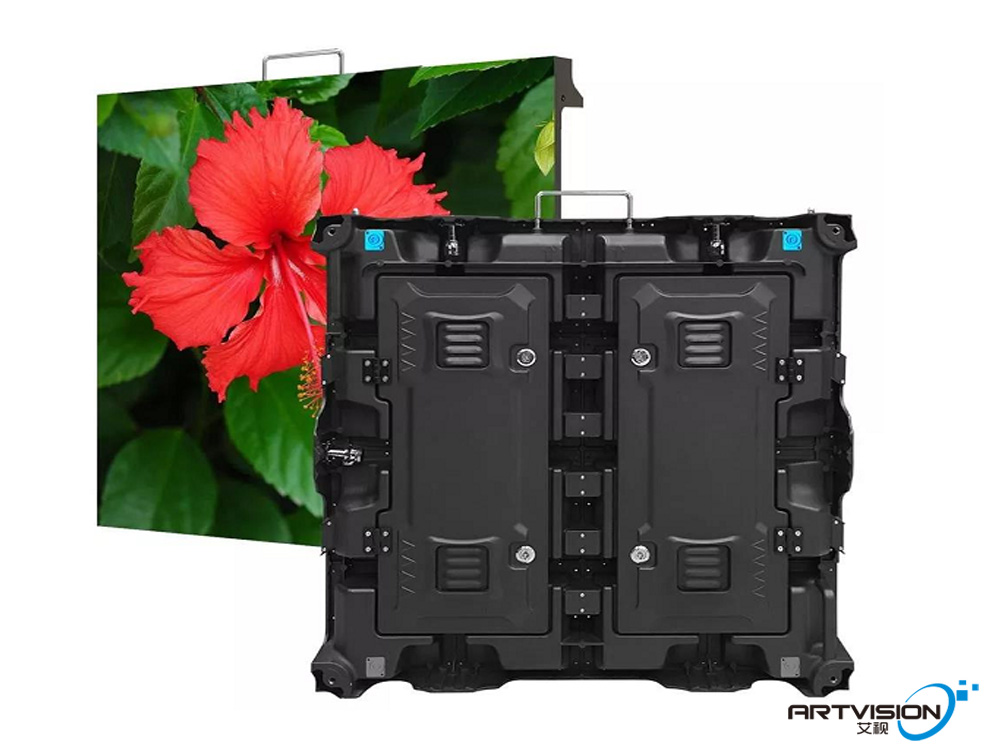

P3.91 Outdoor Rental Full Color LED Screen

 Tips：Click to zoom in
Product Features
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

2. Nice appearance and simple structures.

3. Jointed correctly, being installed & dismounted by one person without tool.

4. Humanized operating interface with breakdown indicator lights, easy to maintain.

5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Applications

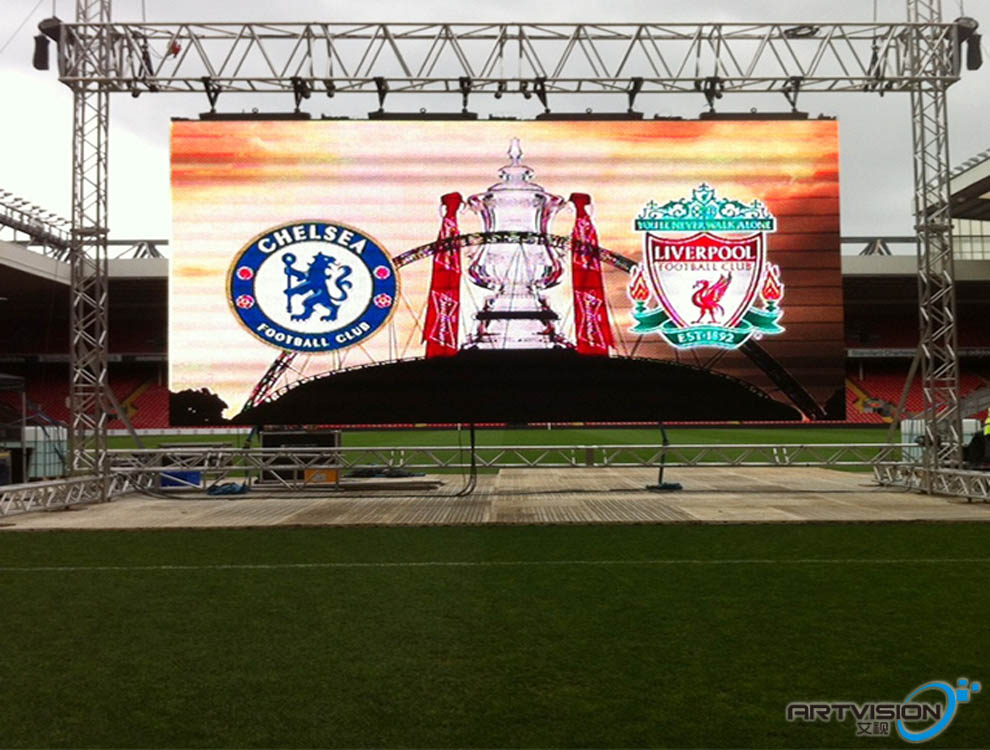

P3.91 led outdoor video cabinets widely used in stage rental,singing and dancing event,conferences,exhibitions,stadiums,theaters,auditoriums,lecture halls,multi-purpose halls,conference rooms,interpretation halls,di bars,night clubs,high-end entertainment discos,TV station Spring Festival Evening,auto show,important cultural events in various provinces and cities.

Technical Index
P3.91 Outdoor rental  led video wall

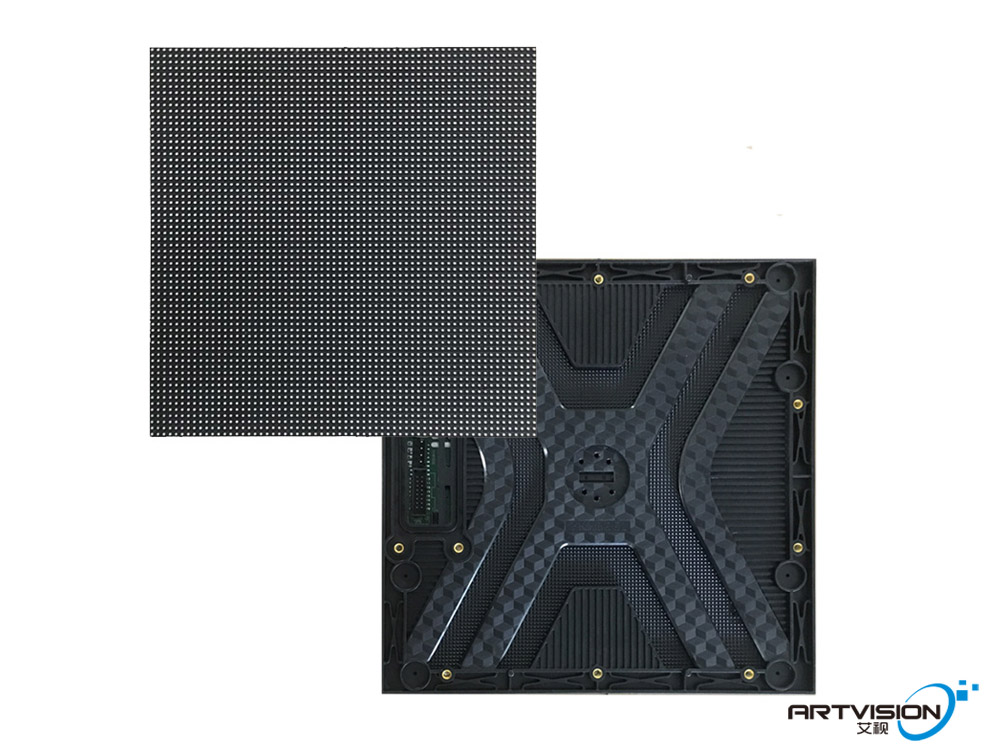

Led module Pixel Pitch 3.91mm
Pixel Configuration SMD2727
Module Resolution 64*64dots
Module Pixles 4096dots
Module Size 250*250mm

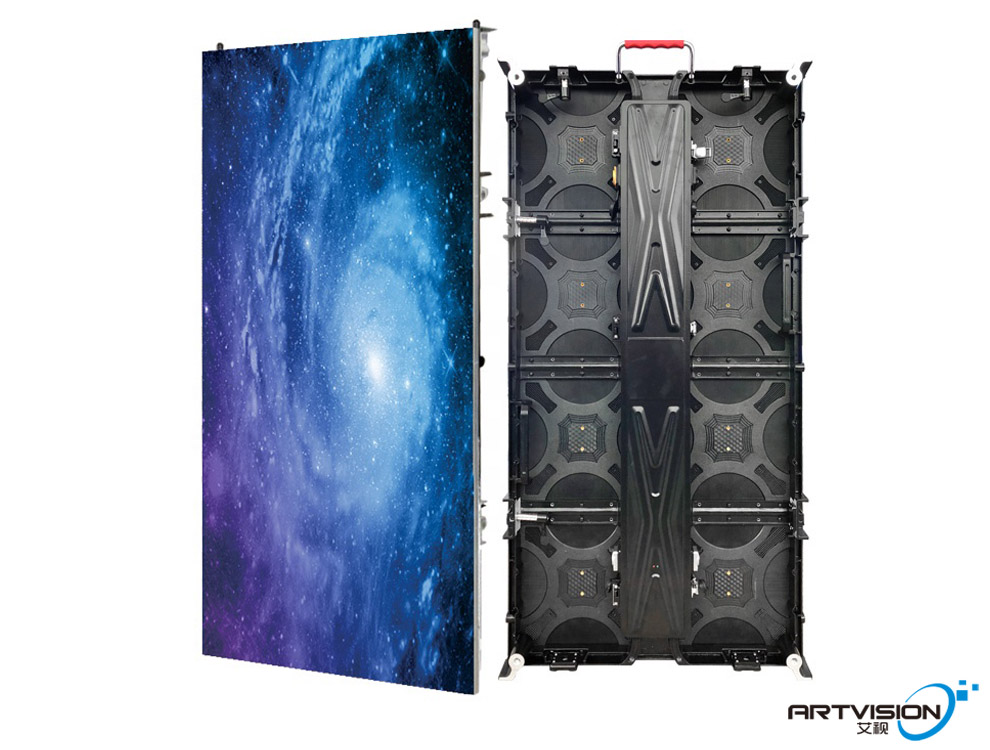

LED cabinets Cabinet Size(W*H*D) 500*500*80mm or 500*1000*80mm
Cabinet Resolution 128*128dots or 128*256
Module Quanity 4pcs or 8 pcs
Cabinet Pixels 16384dots or 32768
Material Die Casting Aluminum
whole led display Brightness ≥5000cd/㎡
Pixel Density 65,536dots/m2
Driving Method 1/16 scan constant current
View Angle 160H,120V
Optimal Viewing Distance ≥3meters
Brightness Control Red,Green and Blue 4096 Grade/Each
Fresh requency ≥3840Hz
Frame Frequency 50Hz
Input Voltage AC240V/50Hz
Defects Rate ≤0.00001
Power Consumption Max:200W/Cabinet   Average:100W/Cabinet
Screen weight 8.5KG/Cabinet
MTBF >10,000 hours
Life span ≥100,000 hours
Protective Grade IP67
Temperature-operating ﹣35℃～50℃
Humidity-operating  10%～95%
Color depth 16 bit
Controlling system Nova(Sending Card,Receiving Cards and Hubs)
Operating System  Windows XP/7/8/10
