P2.604 Outdoor Rental Led screen Die-Casting Cabinet

 Tips：Click to zoom in
front led cabinet
sided rental led sign
led display

Overview

  • The P2.604 Outdoor Rental LED Display is a robust, weatherproof solution designed for demanding outdoor rental applications. Combining high brightness, exceptional durability, and rapid deployment, this display excels in events, festivals, sports venues, and large-scale installations. Its lightweight, modular design and IP65-rated protection ensure reliability in diverse weather conditions, making it ideal for rental companies prioritizing flexibility and performance.

  • Key Features

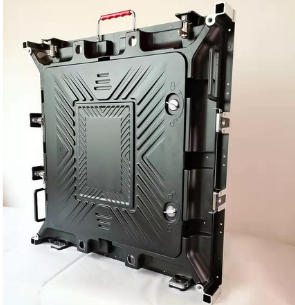

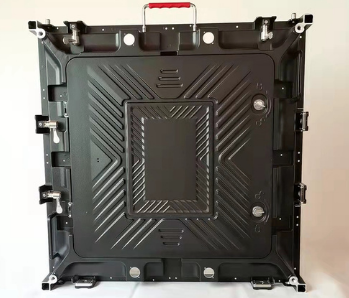

    1.High-Strength Die-Cast Aluminum Cabinet
    Cabinet Dimensions: 500×500mm / 500×1000mm
    Material: Die-cast aluminum
    Weight: Ultra-lightweight
    2.Quick Assembly & Portability
    Tool-free interlocking system enables rapid installation and dismantling, critical for time-sensitive outdoor events.
    Slim, stackable cabinets simplify storage and logistics.
    3.IP65 Waterproof & Dustproof Protection
    Fully sealed cabinets with integrated waterproof gaskets and drainage channels to withstand rain, dust, and humidity.
    Reinforced joints and corrosion-resistant components ensure long-term durability in harsh environments.
    4.High Brightness for Outdoor Visibility
    Brightness: ≥4000nits (adjustable to suit daytime and nighttime conditions).
    Advanced brightness control technology maintains clarity under direct sunlight while conserving energy.
    5.Rental-Optimized Design

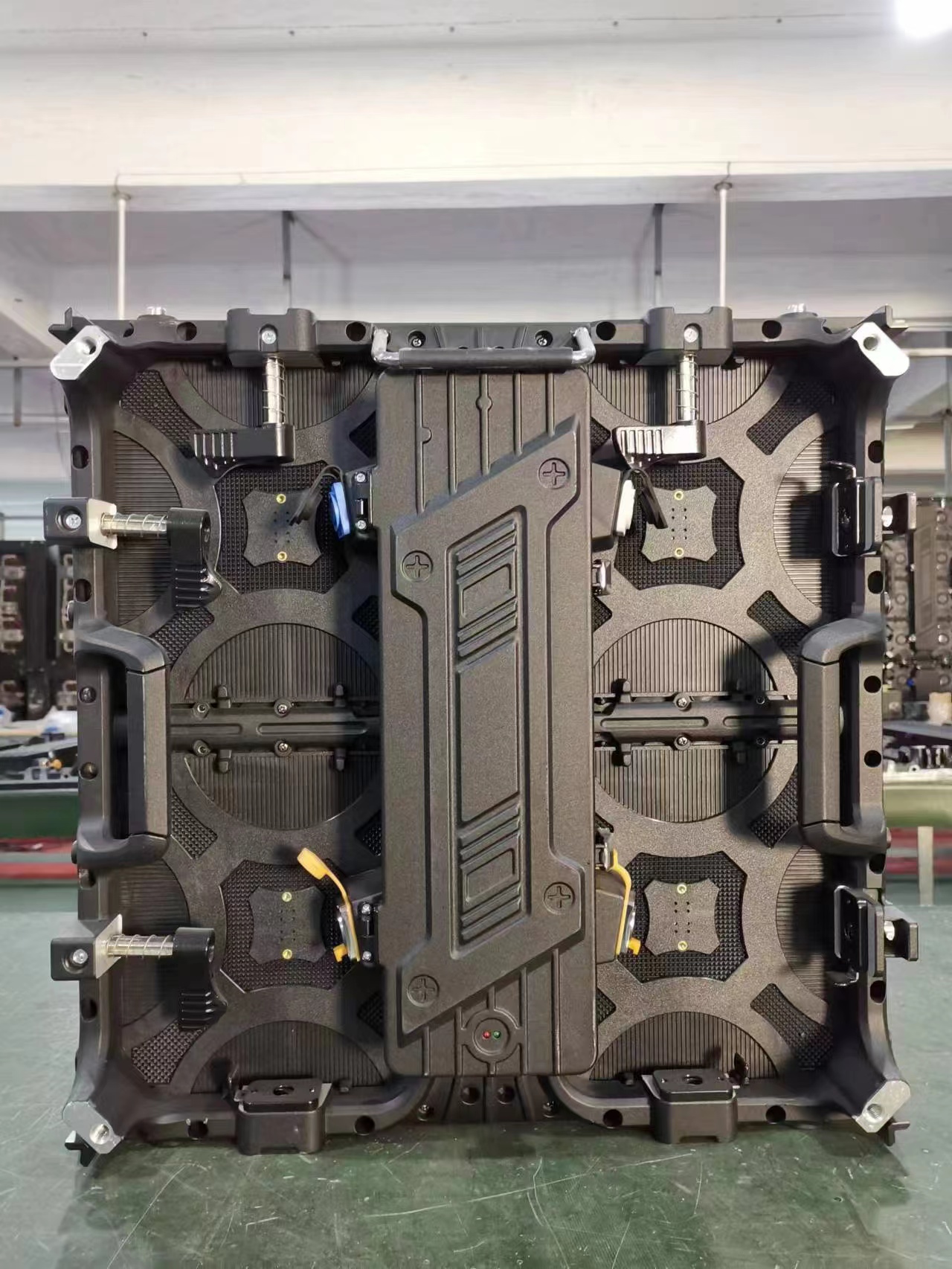

    Rear Maintenance : Back access for quick module replacement (design varies by configuration).
    Durable Connectors: Industrial-grade power and signal connectors resistant to vibration and frequent plugging/unplugging.

    •  Advantages

          • All-Weather Reliability: IP65 protection ensures uninterrupted performance in rain, wind, or dust.

          • Effortless Setup: Lightweight cabinets and tool-free assembly reduce labor costs and setup time.

          • High Brightness & Clarity: Dominates outdoor environments with vivid visuals, even in direct sunlight.

          • Durability: Reinforced edges, shockproof design, and anti-corrosion coatings withstand frequent transportation and rough handling.

          • Customizable Configurations: Supports curved, straight, or large-scale flat installations for creative stage designs.

      •

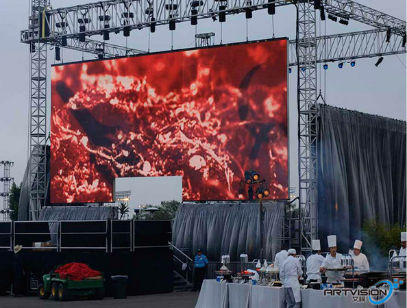

Applications

    • Outdoor Concerts & Festivals

    • Sports Stadiums & Arenas

    • Corporate Roadshows & Product Launches

    • Public Events & Live Broadcasts

    • Temporary Billboards & Digital Signage


Technical Specification

  •

 Item

 Technical parameter:P2.604 Outdoor Rental LED Display

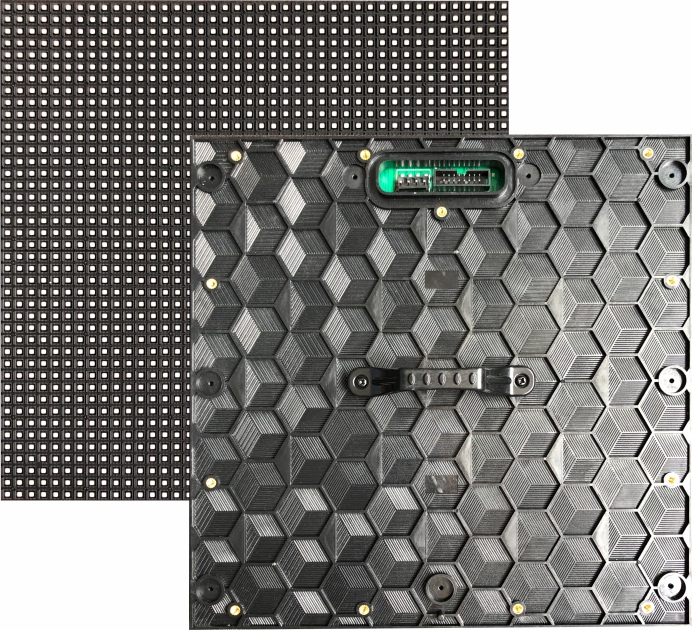

Led Module Dimension Size （W）250*250（H）
Pixel pitch 2.604mm
Pixel Density 147456/ M2
Drive type 1/24Scan
LED specification SMD1415
Pixel resolution （W）96*96（H）
Max power 40W
Panel current 8A
Panel weight 0.58KG
LED Cabinet LED cabinet size 500*500mm/500*1000mm
Cabinet resolution 192*192/192*384dots
Quantity of panel(pcs/sqm) 4/8
Cabinet design Back access
Material Die-casting
Received card MRV412/DH7508S
Panel power supply 5V40A
 Technical Parameter Driving device 16380/ICN2153 Constant current drive
Refresh frequency 3840HZ
Display color 4096*4096*4096
Brightness 4000cd/M2
IP Protection IP65
Best viewing angle Horizontal >140  Vertical>140
Best viewing distance 2.5-50M
Working temperature -20-+60
Panel power supply 5V40A
Screen power supply 220/110 VAC/50HZ+_10%
Max power  <800W/m²
Average power  350W/m²
Power quantity 200W/4PCS
Life span 100000Hours
Communication distance <100M
