P10 outdoor rental LED Display Board

 Tips:Click to zoom in
Product Features
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

2. Nice appearance and simple structures.

3. Jointed correctly, being installed & dismounted by one person without tool.

4. Humanized operating interface with breakdown indicator lights, easy to maintain.

5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Applications

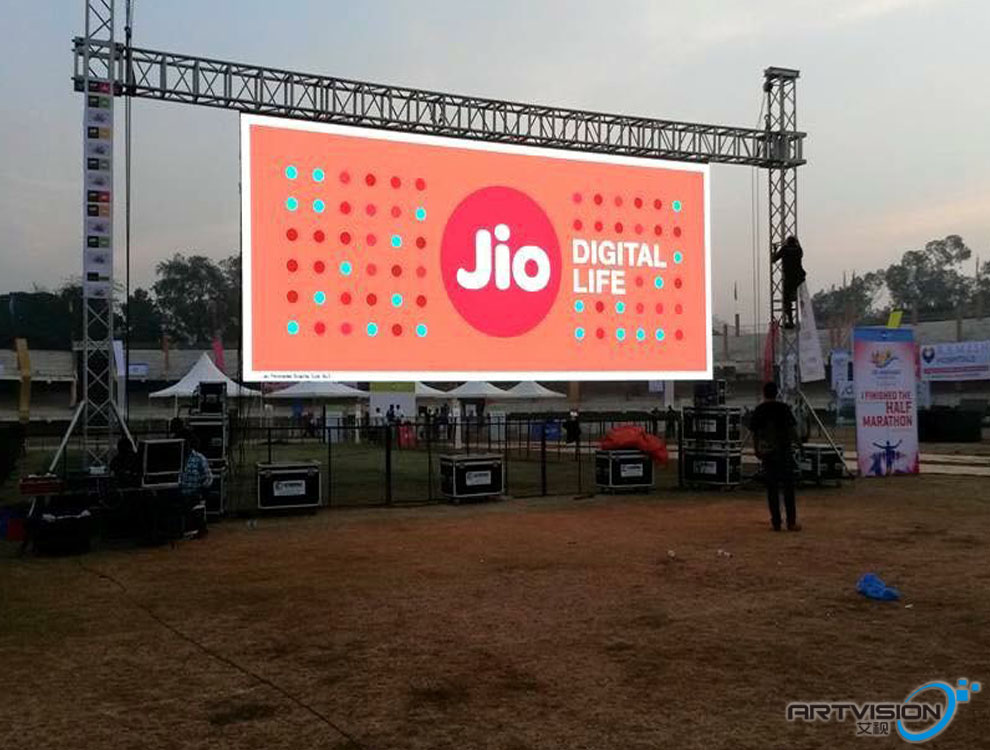

P10   led outdoor rental led cabinet widely used in stage rental,singing and dancing event,conferences,exhibitions,stadiums,theaters,auditoriums,lecture halls,multi-purpose halls,conference rooms,interpretation halls,di bars,night clubs,high-end entertainment discos,TV station Spring Festival Evening,auto show,important cultural events in various provinces and cities.

Technical Index
P10  Outdoor rental  led videowall

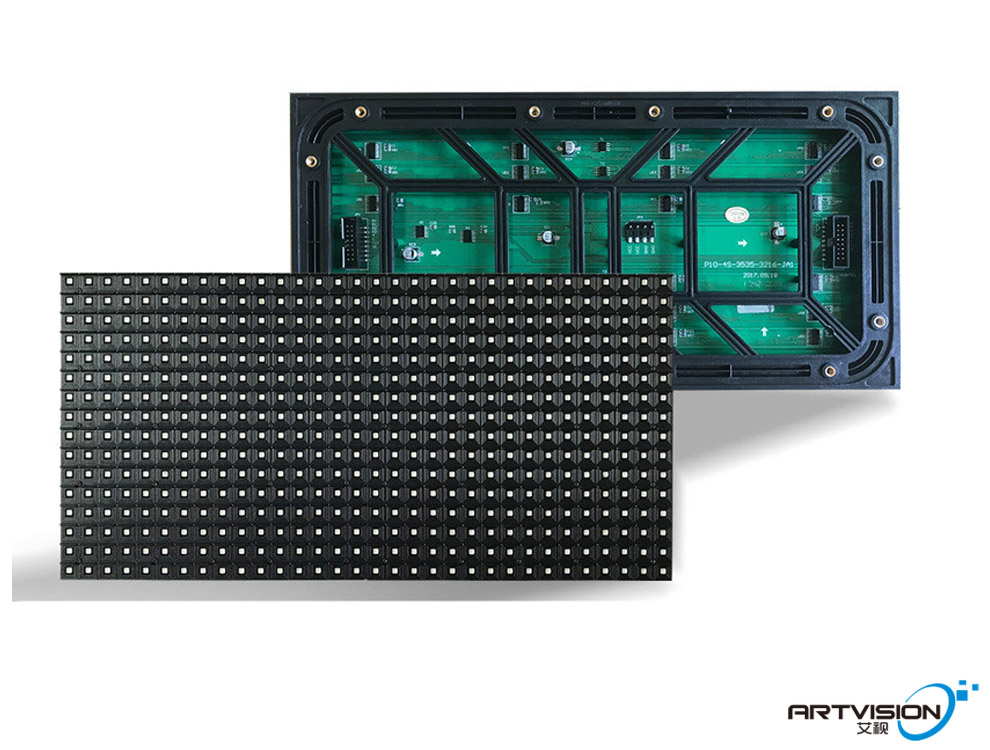

Led module Pixel Pitch 10mm
Pixel Configuration SMD3535
Module Resolution 32*16dots
Module Pixles 512dots
Module Size 320*160mm

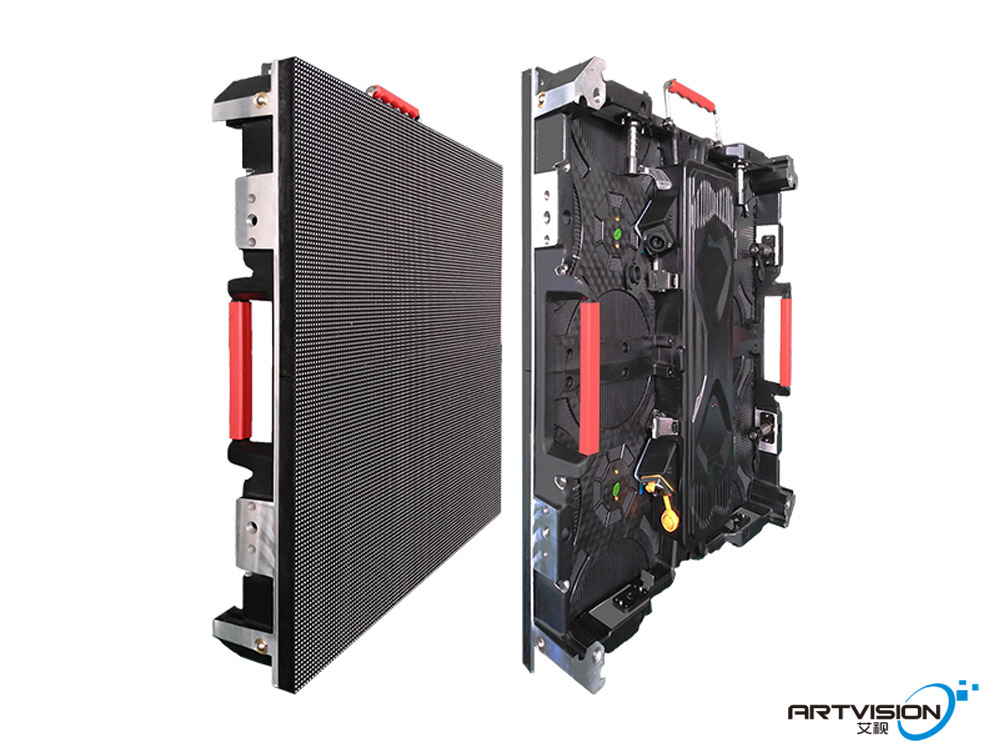

LED cabinets Cabinet Size(W*H*D) 960*960*100mm
Cabinet Resolution 96*96dots
Module Quanity 18pcs
Cabinet Pixels 9216dots
Material  Aluminum Hanging led cabinets
whole led display Brightness ≥5000cd/㎡
Pixel Density 22477dots/m2
Driving Method 1/4scan constant current
View Angle 160H,120V
Optimal Viewing Distance ≥10meters
Brightness Control Red,Green and Blue 4096 Grade/Each
Fresh requency ≥3840Hz
Frame Frequency 50Hz
Input Voltage AC240V/50Hz
Defects Rate ≤0.00001
Power Consumption Max:800W/Cabinet   Average:350W/Cabinet
Screen weight 28KG/Cabinet
MTBF >10,000 hours
Life span ≥100,000 hours
Protective Grade IP67
Temperature-operating ﹣35℃~50℃
Humidity-operating  10%~95%
Color depth 16 bit
Controlling system Nova(Sending Card,Receiving Cards and Hubs)
Operating System  Windows XP/7/8/10
