P6 outdoor rental led Video Display

 Tips：Click to zoom in
Product Features
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

2. Nice appearance and simple structures.

3. Jointed correctly, being installed & dismounted by one person without tool.

4. Humanized operating interface with breakdown indicator lights, easy to maintain.

5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Applications

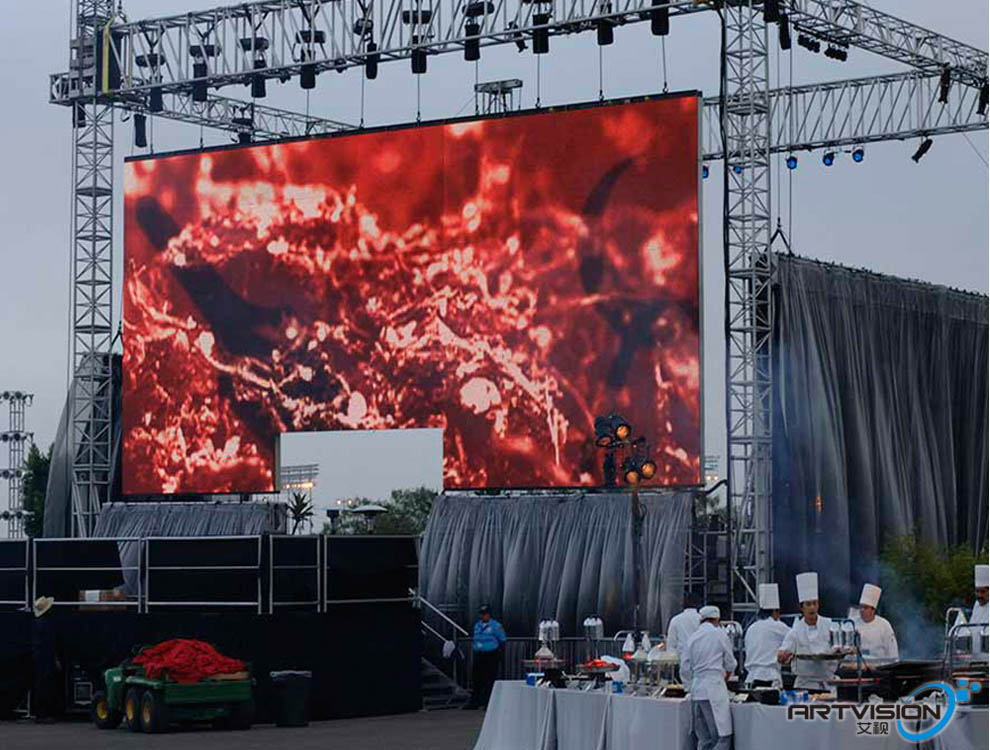

P6 led outdoor rental led cabinets widely used in stage rental,singing and dancing event,conferences,exhibitions,stadiums,theaters,auditoriums,lecture halls,multi-purpose halls,conference rooms,interpretation halls,di bars,night clubs,high-end entertainment discos,TV station Spring Festival Evening,auto show,important cultural events in various provinces and cities.

Technical Index
P6 Outdoor rental  led video wall

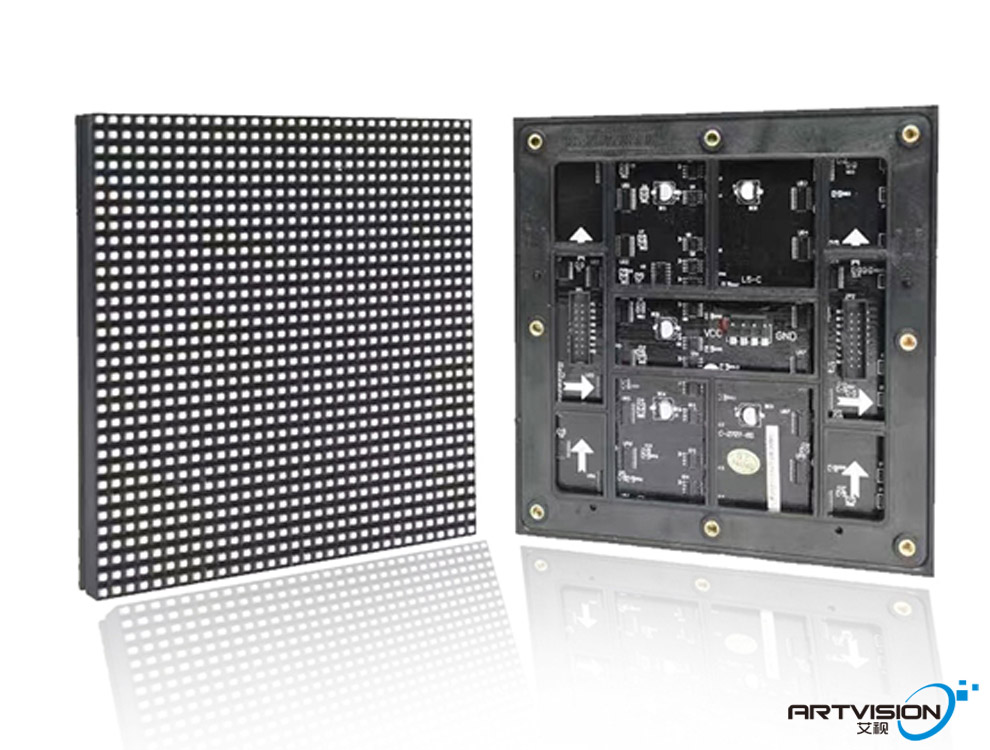

Led module Pixel Pitch 6mm
Pixel Configuration SMD2727
Module Resolution 32*32dots
Module Pixles 1024dots
Module Size 192*192mm

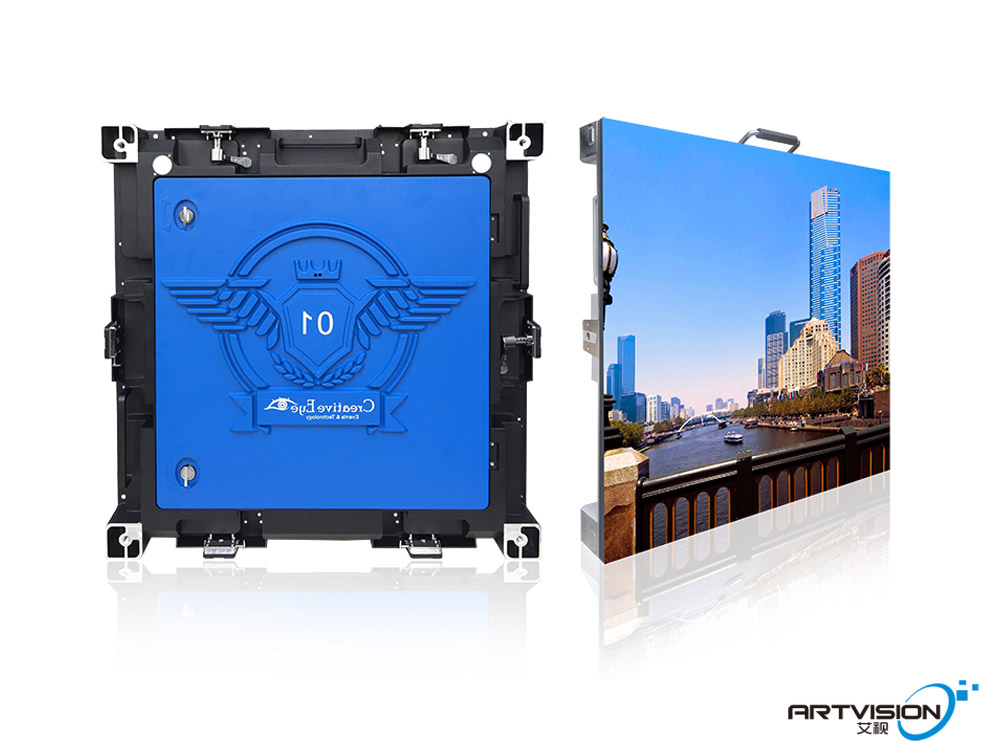

LED cabinets Cabinet Size(W*H*D) 576*576*100mm
Cabinet Resolution 96*96dots
Module Quanity 9pcs
Cabinet Pixels 9216dots
Material Die Casting Aluminum
whole led display Brightness ≥5500cd/㎡
Pixel Density 27777dots/m2
Driving Method 1/8 scan constant current
View Angle 160H,120V
Optimal Viewing Distance ≥3meters
Brightness Control Red,Green and Blue 4096 Grade/Each
Fresh requency ≥3840Hz
Frame Frequency 50Hz
Input Voltage AC240V/50Hz
Defects Rate ≤0.00001
Power Consumption Max:220W/Cabinet   Average:100W/Cabinet
Screen weight 10KG/Cabinet
MTBF >10,000 hours
Life span ≥100,000 hours
Protective Grade IP67
Temperature-operating ﹣35℃～50℃
Humidity-operating  10%～95%
Color depth 16 bit
Controlling system Nova(Sending Card,Receiving Cards and Hubs)
Operating System  Windows XP/7/8/10
