P1.953 Indoor Rental led video screen

 Tips：Click to zoom in

Overview

  • The P1.953 Indoor Rental LED Display is engineered for high-performance rental applications, combining portability, durability, and user-friendly maintenance. Designed for events, exhibitions, stage productions, and corporate settings, this display delivers exceptional visual clarity and seamless installation to meet dynamic rental demands.

  •

    Key Features



  • 1.Ultra-Lightweight & Slim Die-Cast Aluminum Cabinet

    • Cabinet Dimensions: 500×500mm/ 500×1000mm

    • Material: Die-cast aluminum

    • Thickness: Ultra-slim profile (specific thickness to be confirmed) for easy transport and space-saving storage.
      2.Quick Assembly & Disassembly
      Tool-free, interlocking mechanisms enable rapid setup and dismantling, ideal for time-sensitive rental scenarios.
      Lightweight cabinets , simplify handling and reduce labor costs.
      3.Front Magnetic Maintenance
      Magnetic Panel Design: Front-access maintenance without disassembling the entire cabinet. Modules and components can be easily replaced via magnetic fixation, minimizing downtime.
      Rental-Optimized: Streamlined troubleshooting and part replacement ensure maximum uptime during events.
      4.Seamless Tiling & High Stability
      Precision-machined cabinets guarantee pixel-perfect alignment and flatness for a uniform display surface.
      Rigid structure withstands frequent assembly/disassembly cycles.

       Advantages



        • Portability: Compact, stackable cabinets optimize logistics and storage.
        • Durability: Robust construction withstands frequent transportation and setup.
        • Versatility: Compatible with creative shapes (curved, arched, etc.) for stage designs.
        • Cost-Effective: Reduced labor and maintenance costs
      •
Applications

  • Concerts & Live Events

  • Conferences & Trade Shows

  • Broadcast Studios

  • Theatrical Productions

  • Corporate Launches


Technical Specification

  •

 Item  Technical parameter:P1.953 Indoor Rental LED screen

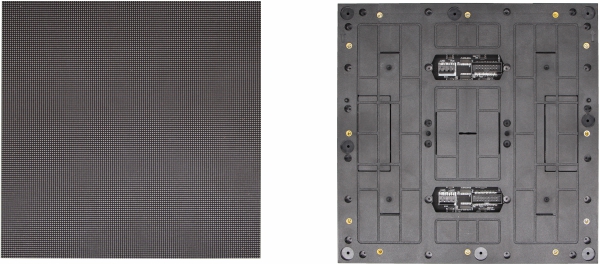

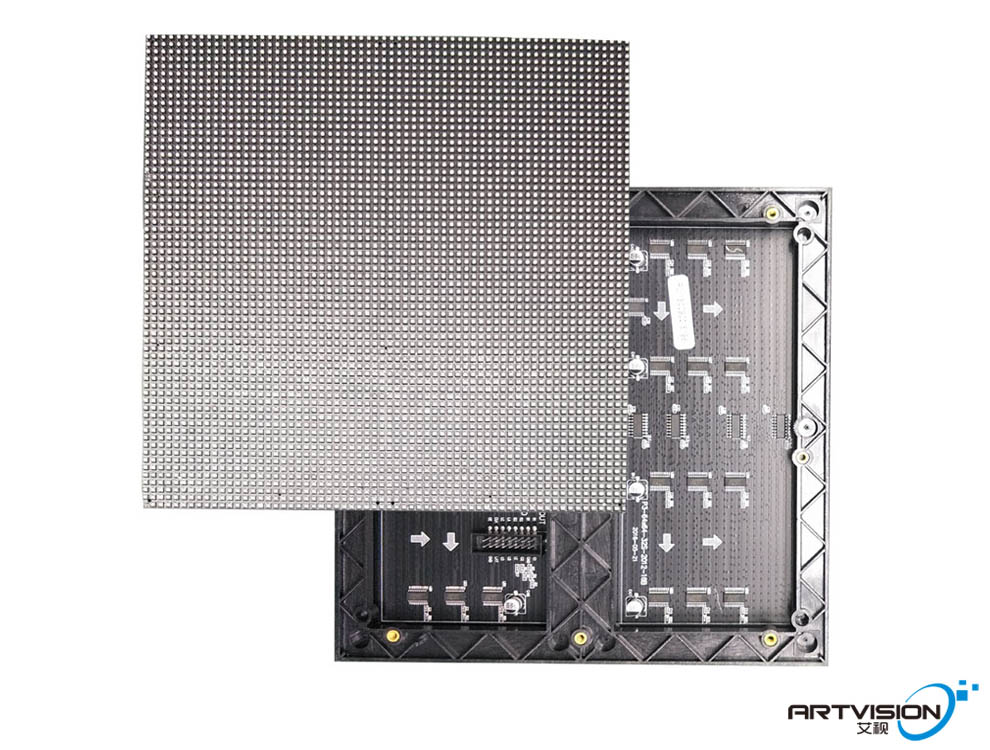

Led Module Dimension Size （W）250*250（H）
Pixel pitch 1.953mm
Pixel Density 262144/ M2
Drive type 1/32 Scan
LED specification SMD1515
Pixel resolution （W）128*128（H）
Max power 22.5W
Panel current 4-4.5A
Panel weight 0.31KG

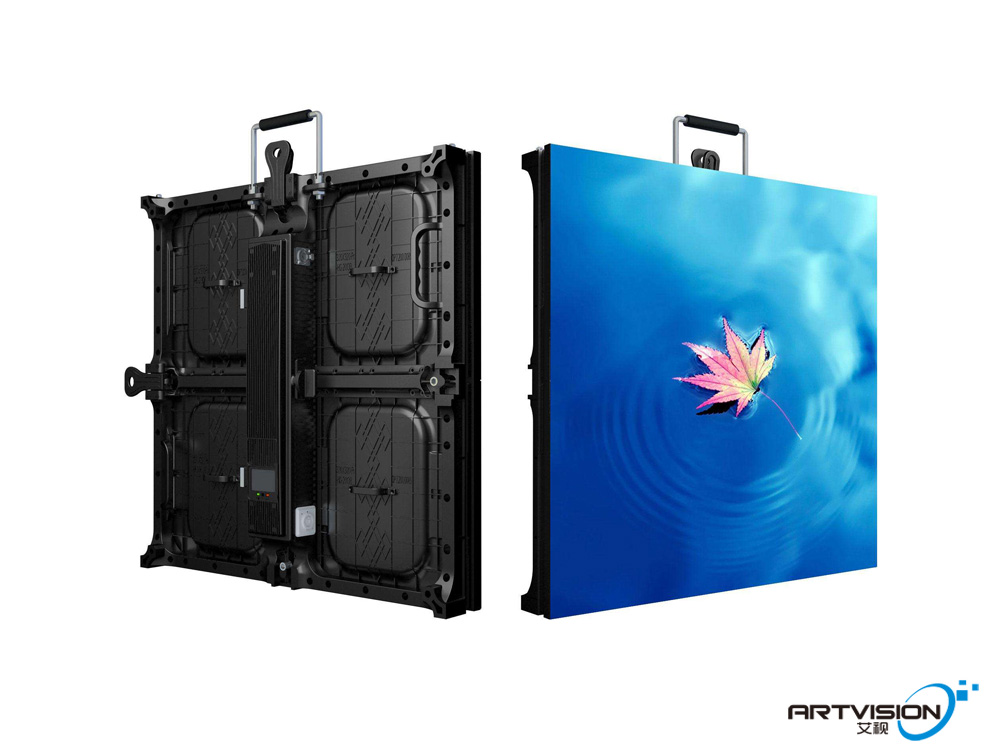

LED Cabinet LED cabinet size 500*500mm/500*1000mm
Cabinet resolution 256*256/256*256dots
Quantity of panel(pcs/sqm) 4/8
Cabinet design front access
Material Die-casting
Received card MRV412/DH7508S
Panel power supply 5V40A
 Technical Parameter Driving device 16380/ICN2153 Constant current drive
Refresh frequency 3840HZ
Display color 4096*4096*4096
Brightness 700cd/M2
IP Protection IP31
Best viewing angle Horizontal >140  Vertical>140
Best viewing distance 2-20M
Working temperature -20-+60
Panel power supply 5V40A
Screen power supply 220/110 VAC/50HZ+_10%
Max power  <660W/m²
Average power  260W/m²
Power quantity 200W/4PCS
Life span 100000Hours
Communication distance <100M

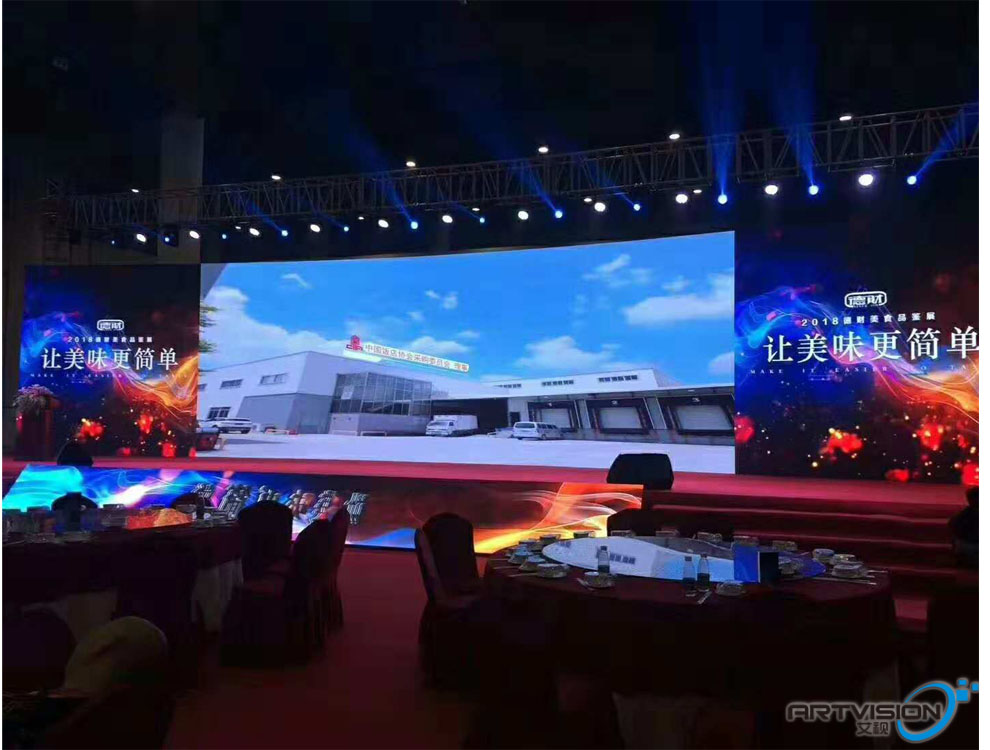

Cases
