Product Features
1. The ultra-light one-box weight is 40% lighter than the die-cast aluminum case,and the weight is only 5kg.The single person can be single-handed and it is very easy to install.
2. Ultra-thin -the box is made of die-cast aluminum,high strength,strong toughness,high precision,not easy to deform,saving labor.
3. Heat dissipation,a good heat dissipation performance,effective protection of the module circuit.
4. Anti-interference,a special anti-electromagnetic interference function
5. The installation of a special box,the upper and lower left and right connections use a fast locking mechanism,10 seconds to complete the installation of a box.
6. High precision,one box after CNC machining,the size is electromechanical processing to 0.1mm,can be seamlessly spliced.
7. Versatile strong one can install any kit hole processing,to meet the lifting,stacking requirements,to meet indoor and outdoor requirements.
8. Eeasy to maintain one can take out the entire die-casting box,truly achieve pre-maintenance
9. cost -the cabinet is light in weight, the required installation cost is low;the cabinet power consumption is low,saving operating costs and reducing labor costs.
2. Ultra-thin -the box is made of die-cast aluminum,high strength,strong toughness,high precision,not easy to deform,saving labor.
3. Heat dissipation,a good heat dissipation performance,effective protection of the module circuit.
4. Anti-interference,a special anti-electromagnetic interference function
5. The installation of a special box,the upper and lower left and right connections use a fast locking mechanism,10 seconds to complete the installation of a box.
6. High precision,one box after CNC machining,the size is electromechanical processing to 0.1mm,can be seamlessly spliced.
7. Versatile strong one can install any kit hole processing,to meet the lifting,stacking requirements,to meet indoor and outdoor requirements.
8. Eeasy to maintain one can take out the entire die-casting box,truly achieve pre-maintenance
9. cost -the cabinet is light in weight, the required installation cost is low;the cabinet power consumption is low,saving operating costs and reducing labor costs.
Applications

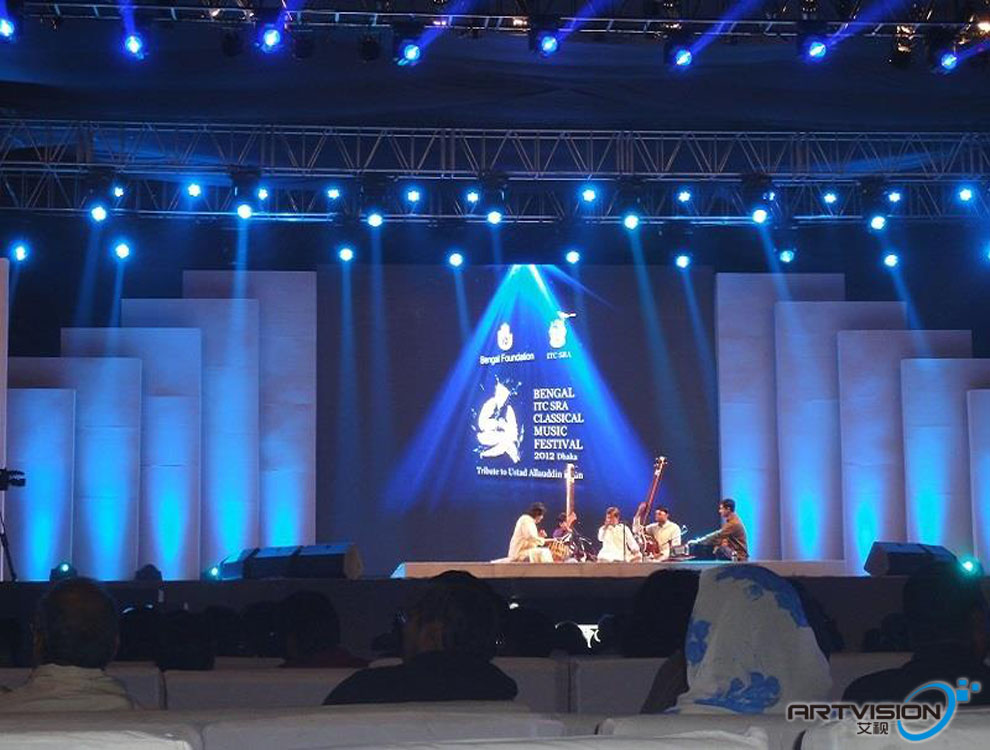

P2.5 led indoor video cabinets widely used in stage rental,singing and dancing event,conferences,exhibitions,stadiums,theaters,auditoriums,lecture halls,multi-purpose halls,conference rooms,interpretation halls,di bars,night clubs,high-end entertainment discos,TV station Spring Festival Evening,auto show,important cultural events in various provinces and cities.
Technical Index
P2.5 Indoor rental led pantallas

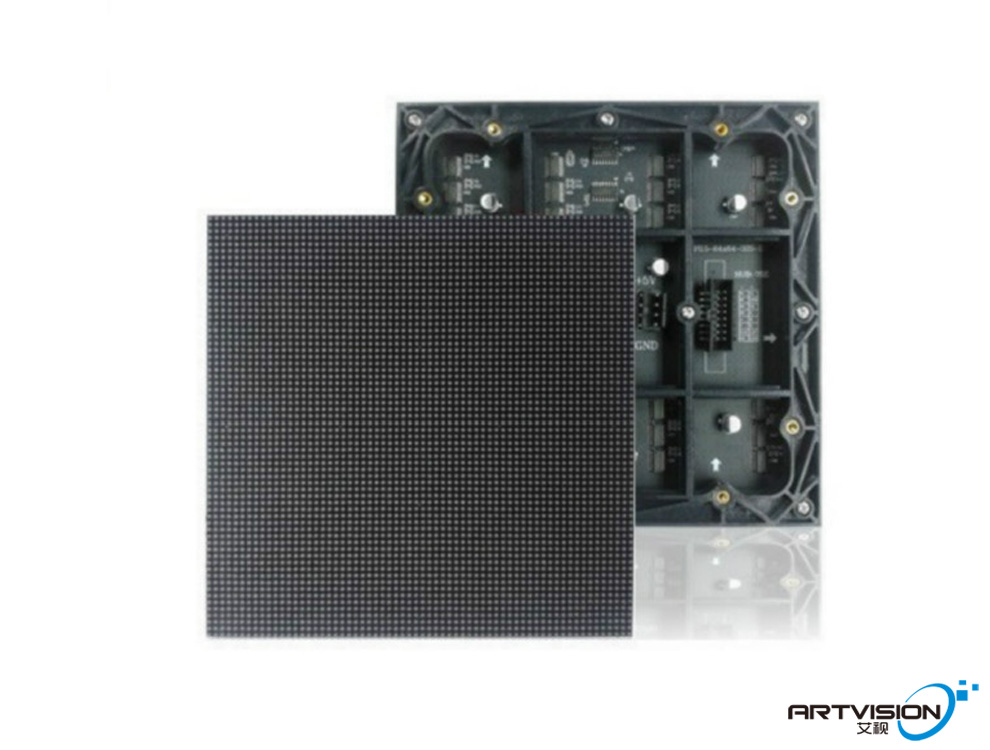

| Led module | Pixel Pitch | 2.5mm |
| Pixel Configuration | SMD2121 | |
| Module Resolution | 64*64dots | |
| Module Pixles | 4096dots | |
| Module Size | 160*160mm | |

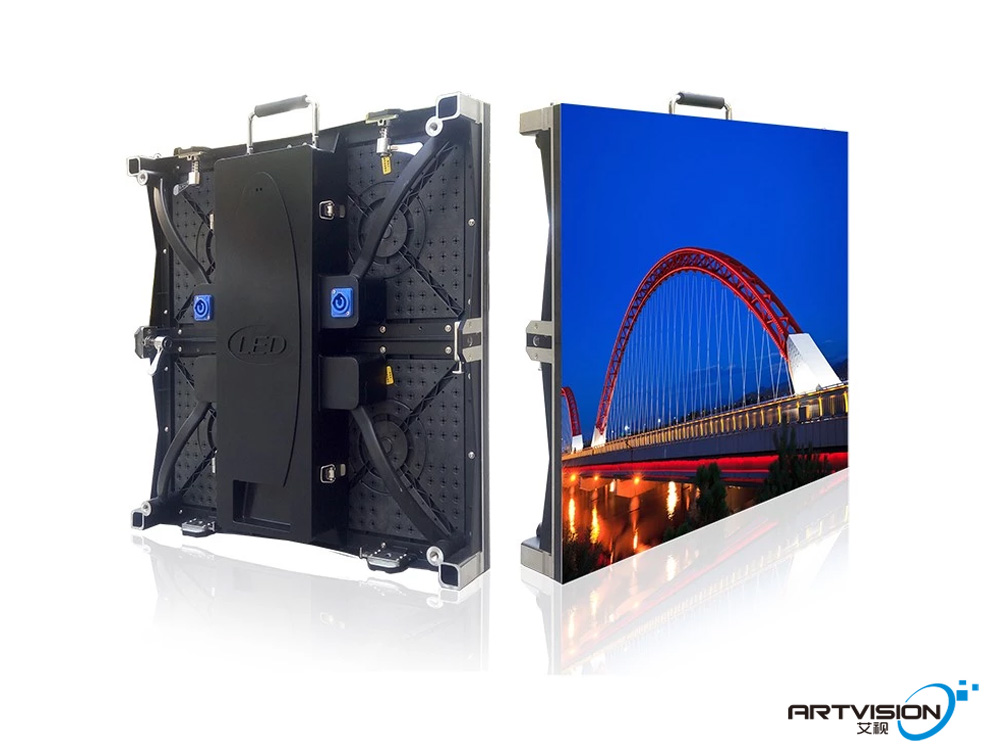

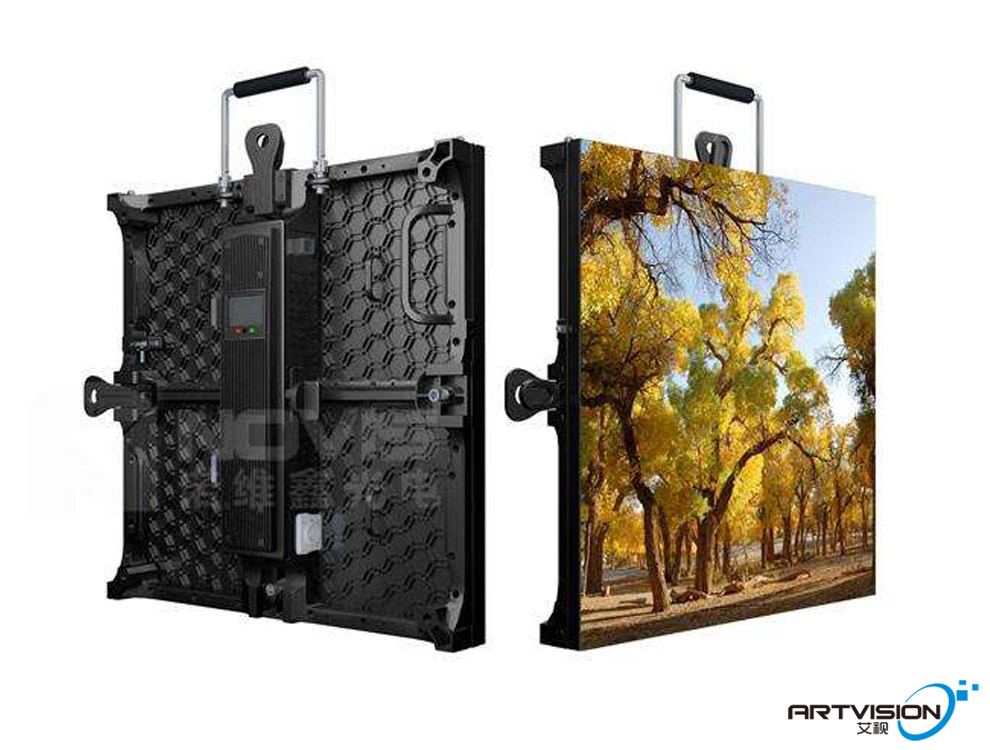

| LED cabinets | Cabinet Size(W*H*D) | 480*480*80mm |
| Cabinet Resolution | 192*192dots | |
| Module Quanity | 9pcs | |
| Cabinet Pixels | 36864dots | |
| Material | Die Casting Aluminum | |
| whole led display | Brightness | ≥1200cd/㎡ |
| Pixel Density | 160000dots/m2 | |
| Driving Method | 1/32scan constant current | |
| View Angle | 160H,120V | |
| Optimal Viewing Distance | ≥3meters | |
| Brightness Control | Red,Green and Blue 4096 Grade/Each | |
| Fresh requency | ≥3840Hz | |
| Frame Frequency | 50Hz | |
| Input Voltage | AC240V/50Hz | |
| Defects Rate | ≤0.00001 | |
| Power Consumption | Max:160W/Cabinet Average:80W/Cabinet | |
| Screen weight | 8.5KG/Cabinet | |
| MTBF | >10,000 hours | |
| Life span | ≥100,000 hours | |
| Protective Grade | IP43 | |
| Temperature-operating | ﹣35℃～50℃ | |
| Humidity-operating | 10%～95% | |
| Color depth | 16 bit | |
| Controlling system | Nova(Sending Card,Receiving Cards and Hubs) | |
| Operating System | Windows XP/7/8/10 |
