P16 DIP346 Outdoor LED Billboard

 Tips：Click to zoom in

Overview

  • The P16 DIP346 Outdoor LED Display is engineered for high-intensity traffic applications demanding exceptional brightness, thermal resilience, and long-term reliability. Featuring a 16mm pixel pitch and DIP346 LED technology in a 256mm x 256mm module, this display delivers unmatched visibility in direct sunlight and harsh environments. Designed specifically for transportation systems, it ensures clear communication of critical information such as traffic alerts, route guidance, and safety warnings, even under extreme temperatures and heavy-duty operation.


  • Key Features

    1.Ultra-High Brightness for Traffic Visibility

    • Brightness: 9,500 cd/m² (adjustable), optimized for long-distance readability in sunlight-glare conditions.

    • DIP346 LEDs: Robust, high-output diodes with superior luminance consistency over traditional SMD LEDs.

    • Anti-Glare Surface: Reduces reflections from vehicle headlights or sunlight, enhancing clarity for drivers.


    • 2.Advanced Thermal Management

      • Heat Dissipation: Open-frame design with aluminum alloy cabinets and integrated heat sinks prevents overheating, even in ambient temperatures up to +70°C.

      • Wide Temperature Range: Operates reliably in -40°C to +70°C, ideal for deserts, tropical regions, and high-traffic zones.

    3.Traffic-Optimized Durability

    • IP65 Protection: Fully sealed against dust, heavy rain, and windblown debris (e.g., highway dust, industrial pollutants).

    • Vibration Resistance: Reinforced structural design to withstand vibrations from nearby traffic or construction.

    • Corrosion-Resistant Components: Stainless steel fasteners and anti-rust coatings ensure longevity in humid or coastal areas.


    • 4.Energy Efficiency & Stability

      • Power Consumption: 200W/m² (average), 30% lower than conventional traffic displays.

      • 24/7 Operation: Built for continuous use with minimal maintenance, critical for round-the-clock traffic systems.

    •  Advantages

            • Traffic-Grade Brightness: 9,500 cd/m² ensures visibility in all daylight conditions.

              Heat Resilience: No performance degradation in extreme temperatures.

              Durability: IP65 rating and corrosion resistance withstand harsh environmental stressors.

              Cost Efficiency: Lower energy consumption and minimal maintenance reduce lifecycle costs.

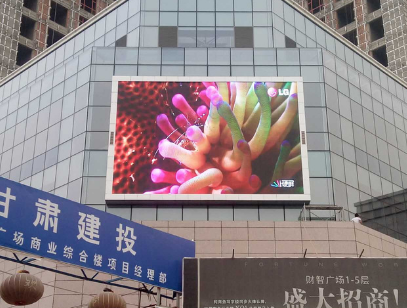

Applications
      • Highway Variable Message Signs (VMS): Real-time traffic updates, speed limits, and emergency alerts.

        Toll Plaza Displays: Fee information, lane guidance, and safety warnings.

        Public Transport Hubs: Bus/train schedules, route maps, and passenger advisories.

        Parking Guidance Systems: Dynamic space availability and directional indicators.

        Urban Traffic Signals: High-visibility countdown timers and intersection alerts.

Technical Specification

  •

 Item

 Technical parameter:P16 Outdoor DIP346 led video screen

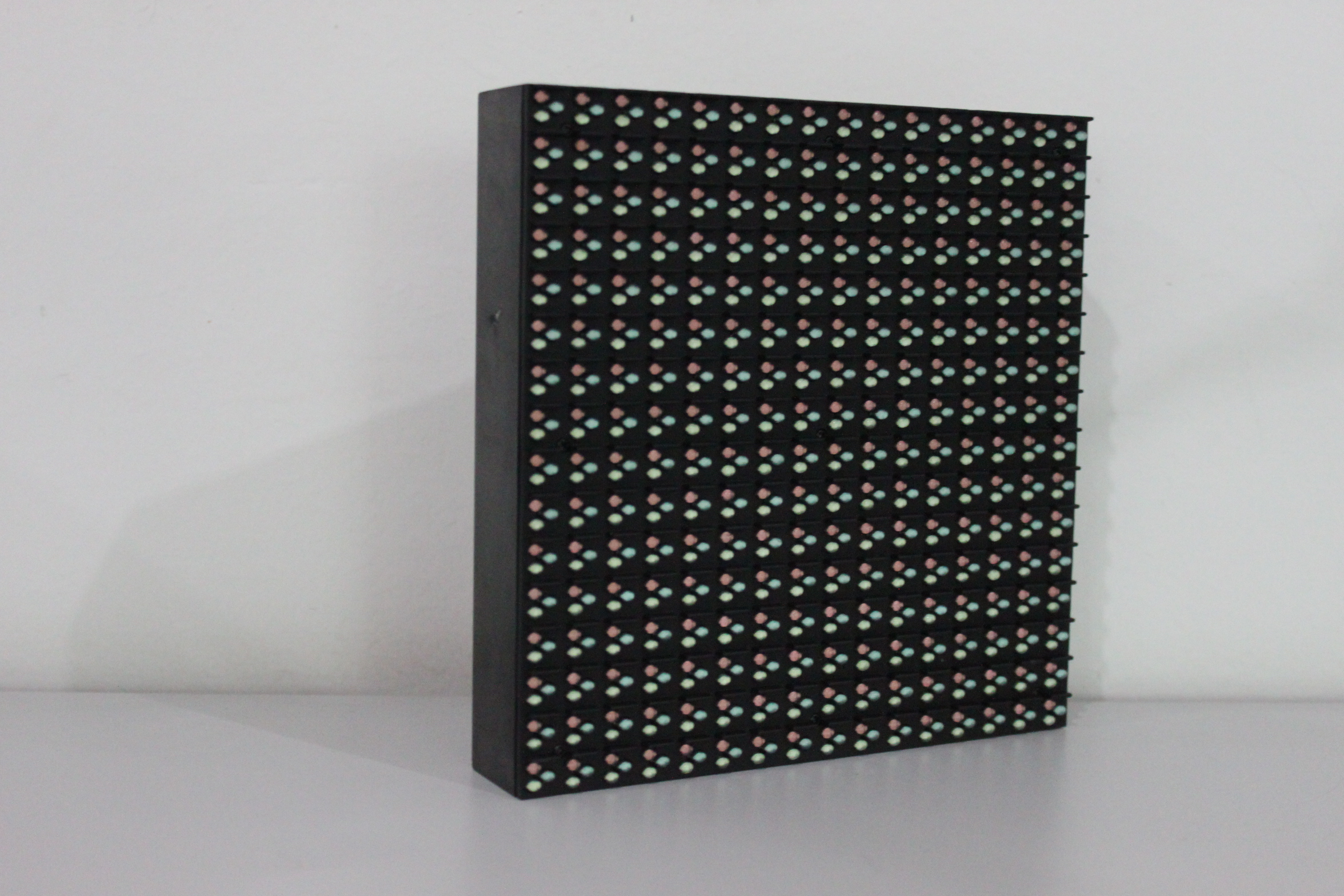

Led Module Dimension Size （W）256*256（H）
Pixel pitch 16mm
Pixel Density 3906dots/ M2
Drive type static
LED specification DIP346
Pixel resolution （W）16*16（H）
Average  power 11W
Panel current 2.5A
Panel weight 0.78KG

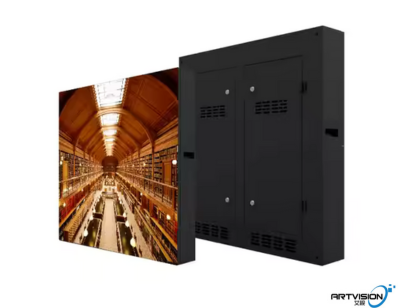

LED Cabinet LED cabinet size 1024*1024mm
Cabinet resolution 64*64
Quantity of panel(pcs/Cabinet) 16
Cabinet design Back access
Material Steel
Received card MRV412/DH7508S
Panel power supply 5V60A
 Technical Parameter Driving device 16380/ICN2153 Constant current drive
Refresh frequency 3840HZ
Display color 4096*4096*4096
Brightness 9500cd/M2
IP Protection IP65
Best viewing angle Horizontal >110  Vertical>55
Best viewing distance 10-80M
Working temperature -20-+60
Panel power supply 5V40A
Screen power supply 220/110 VAC/50HZ+_10%
Max power  <500W/m²
Average power  190W/m²
Power quantity 300W/8PCS
Life span 100000Hours
Communication distance <100M
