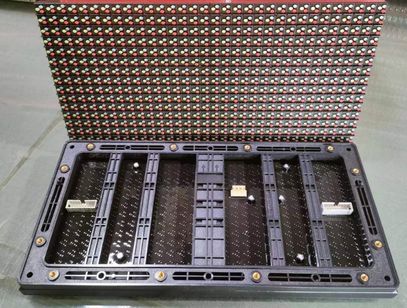

P10 Outdoor DIP346 led video screen

 Tips：Click to zoom in

Overview

  • The P10 DIP346 Outdoor LED Display is a rugged, high-performance solution engineered for extreme outdoor environments where unmatched brightness, energy efficiency, and durability are critical. Featuring a 10mm pixel pitch, DIP346 LED technology, and a compact module size of 320mm x 160mm, this display excels in high-temperature climates, coastal regions, and high-traffic areas such as highways. With a brightness exceeding 9,000 cd/m² and 50% lower power consumption than conventional SMD outdoor displays, it redefines reliability and cost-effectiveness for demanding applications.


  • Key Features

    1.Ultra-High Brightness

    Brightness: Over 9,000 cd/m² (adjustable),  direct sunlight and long-distance visibility.
    DIP346 LEDs: Robust, high-output LEDs designed to maintain brightness consistency even in harsh environments.
    Anti-Glare Coating: Reduces reflections for clear visibility in intense sunlight (ideal for Middle Eastern and African climates).


    • 2.Energy Efficiency

      • Power Consumption: 180W/m² average (half the energy of traditional SMD outdoor displays)
        Energy-Saving Design: Advanced driver ICs and optimized circuit layout minimize energy waste.


    3.Superior Thermal Management

    • No Overheating: DIP346 LEDs and open-frame design ensure efficient heat dissipation, eliminating SMD overheating risks.
      Heat-Resistant Materials: Aluminum alloy cabinets with heat-dissipating fins for stable operation in temperatures up to +70°C.


    • 4.Extreme Durability & Weatherproofing

      • Corrosion Resistance: Anti-rust coatings and stainless steel fasteners for longevity in humid or saline environments.
        Wide Temperature Range: Operates reliably in -20°C to +70°C, tested for desert and tropical climates.

    •  Advantages

                  1. Brightness Champion:Over 9000 cd/m² outperforms standard SMD displays in direct sunlight

            • Energy Savings: 50% lower running costs compared to SMD alternatives.

              Cool Operation: No overheating issues, even in extreme heat.

              Military-Grade Protection: IP65 rating and corrosion resistance ensure decades of service



Applications

      • Highway/Roadside Billboards: High brightness ensures visibility for fast-moving traffic.

      • Coastal & Desert Regions: IP65 and anti-corrosion design withstand salt spray, sand, and extreme heat.

      • Middle East & Africa: Built for 24/7 operation in high-temperature climates.

      • Industrial Zones: Resistant to dust, humidity, and chemical exposure.


Technical Specification

  •

 Item

 Technical parameter:P10 Outdoor DIP346 led video screen
Led Module Dimension Size （W）320*160（H）
Pixel pitch 10mm
Pixel Density 10000/ M2
Drive type 1/4Scan
LED specification DIP346
Pixel resolution （W）32*16（H）
Average  power 9.5W
Panel current 2.56A
Panel weight 0.78KG
LED Cabinet LED cabinet size 960*960mm
Cabinet resolution 96*96
Quantity of panel(pcs/Cabinet) 18
Cabinet design Back access
Material Die-casting/Steel
Received card MRV412/DH7508S
Panel power supply 5V60A
 Technical Parameter Driving device 16380/ICN2153 Constant current drive
Refresh frequency 3840HZ
Display color 4096*4096*4096
Brightness 9000cd/M2
IP Protection IP65
Best viewing angle Horizontal >110  Vertical>55
Best viewing distance 10-80M
Working temperature -20-+60
Panel power supply 5V60A
Screen power supply 220/110 VAC/50HZ+_10%
Max power  <480W/m²
Average power  180W/m²
Power quantity 300W/9PCS
Life span 100000Hours
Communication distance <100M
