P3.84 Outdoor Street Pole Led Light Display Board

 Tips：Click to zoom in

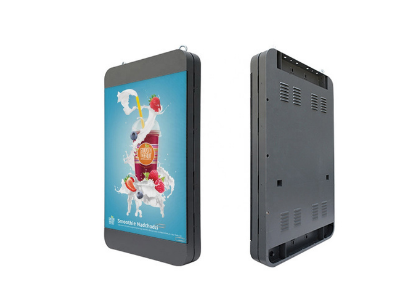

P3.84 smart led cabinet

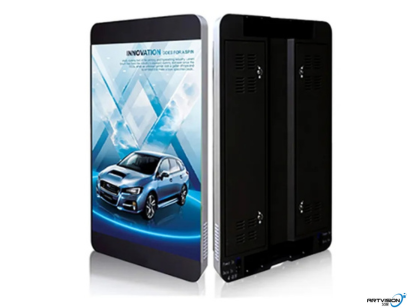

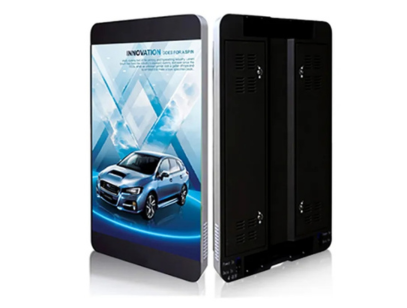

P3.84 smart led screen
smart led screen

Overview

  • P3.84 Outdoor Street Pole Led Light Display Board bring new value to the city.Using existing facilities and locations, these displays can be installed quickly without Structure body.The displays can be easily managed through 3G/4G/WiFi and other ways.

  • Key Features

    ★High Brightness & Contrast:
    5500-6000cd/sqm Optimized for outdoor visibility under direct sunlight
    ★High waterproof grade:
    High waterproof grade: independent box design three-layer waterproof structure to achieve IP65 scale
    ★Support multiple Control Mode
    The device comes standard with  WiFi, Ethernet port, HDMI (optional), and wireless 4G(optional)
    ★Multi-screen synchronization：
    Advanced Lora technology to achieve multi-screen synchronization without delay
    ★Easy to maintain：
    All cases designed to open the door no more than three locks, hidden door lock design
    ★Box Design：
    Adapt to the light pole design, the surface of paint treatment resistant to harsh environment, anti-corrosion  anti-oxidation





      •  Advantages

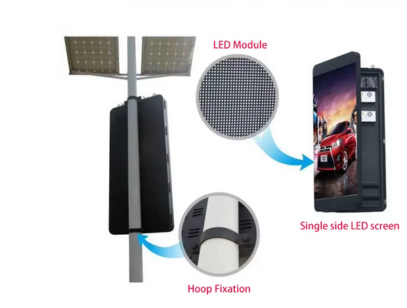

              • Easy Installation

                • Lightweight (≤28kg/cabinet) & modular design.

                • Front maintenance & slim profile (120mm)

              • Super Brightness

                • ≥5500 nits for sunlight-readable clarity.

                • Auto brightness adjustment (day/night modes)

              • Cost-Effective:
                Low power consumption
                Smart Control
                Remote updates via Wi-Fi/4G/Ethernet.
                High refresh rate (3840Hz) for smooth video.


    Applications

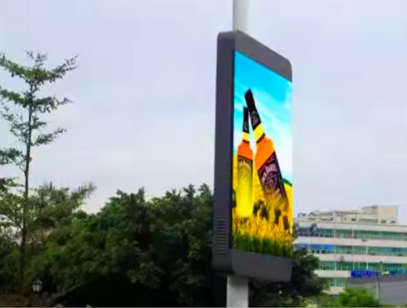

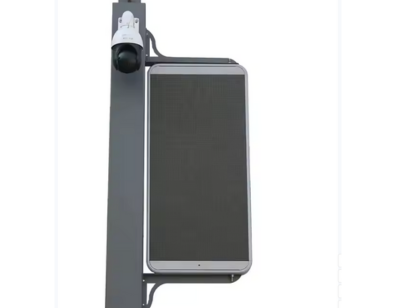

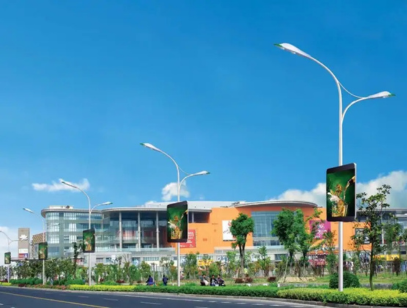

        • Streetlight/pole-mounted advertising.
          Transportation hubs, parking guidance.
          Public event displays.


    Technical Specification

    •

     Item

    P3.84 Outdoor Street Pole Led Light Display Board
    Led Module Dimension Size （W）200*200mm（H）
    Pixel pitch 3.84mm
    Pixel Density 67600/ M2
    Drive type 1/13Scan
    LED specification SMD1921
    Pixel resolution 52(W)*52（H）
    LED Cabinet LED cabinet size 600*1200 or customized
    Cabinet resolution 156*312dots or others
    Outer cabinet size 700*1300mm
    Quantity of panel(pcs/sqm) 18
    Cabinet design Back access
    Material Steel
    Cabinet Weight（Kg） 28kg/set
    Cabinet view Single sided or Double sided
     Technical Parameter Driving device ICN2153 Constant current drive
    Refresh frequency 3840HZ
    Display color 4096*4096*4096
    Brightness 5500cd/M2
    IP Protection IP65
    Best viewing angle Horizontal >140  Vertical>140
    Best viewing distance 3M
    Working temperature -20-+60
    Panel power supply 5V60A
    Screen power supply 220/110 VAC/50HZ+_10%
    Max power  <800W/m²
    Average power  350W/m²
    Power quantity 300W/6PCS
    Life span 100000Hours
    Communication distance <100M
