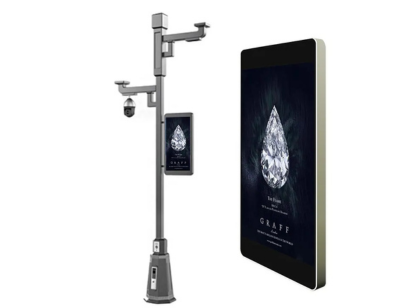

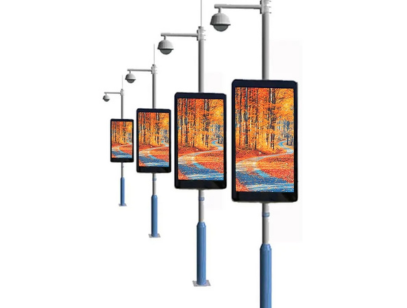

Smart street pole led display

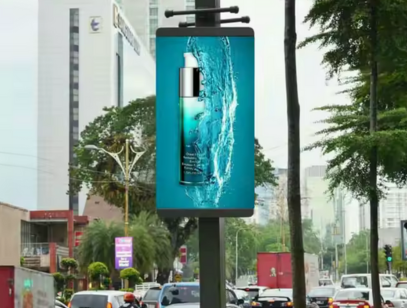

Street pole LED displays bring new value to the city.Using existing facilities and locations, these displays can be installed quickly without Structure body.The displays can be easily managed through 3G/4G/WiFi and other ways.
Applications
Pedestrian street, commercial street, theme park
Technical Index
| Pixel | P3.33 mm |
| Pixel Configuration | SMD19211R1G1B |
| Module size | 200*200 mm |
| Pixel density/unit | 60*60 pixels /unit |
| Cabinet Material | Steel or ALuminum Cabinet |
| Driving Method | Constant current drive, 1/15Scanning |
| Optimal Viewing Distance | ≥4 m |
| Best Viewing Angle | Horizontal120° Vertical 120° |
| Brightness | ≥5500mcd |
| Grey Scale | 16 bit |
| Color Temperature | 2000K-9500k adjustable |
| Refresh Rate | ≥1920Hz |
| Frame Rate | ≥ 60 frames/sec |
| Defect Rate | ≤0.0001 |
| Control Mode | Asynchronous |
| Data Transfer Method | USB/WIFI/4G |
| MTBF | >10,000 hours |
| Life span | ≥100,000 hours |
| Protective Grade | IP65 |
| Operating Temperature | ﹣30℃～50℃ |
| Operating Humidity | 10%～90% |
| Input Voltage | AC110-240V / 50Hz-60Hz |
| Power Consumption | Max: 520w/㎡; Average:260w/㎡ |
| Weight | Approx. 40kg/sqm |
