P4 Outdoor Street Advertising Light Pole LED Wall

 Tips：Click to zoom in
P4 outdoor pole led wall

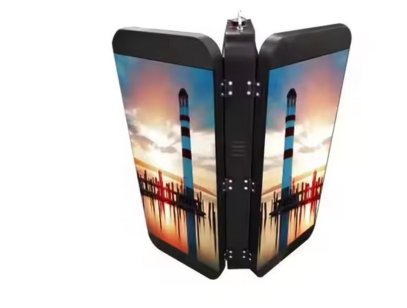

double sided led cabinet
P4 advertising led cabinet

Overview

  • P4 Outdoor Street Advertising Light Pole LED Wall bring new value to the city.Using existing facilities and locations, these displays can be installed quickly without Structure body.The displays can be easily managed through 3G/4G/WiFi and other ways.

  • Key Features

    ★High Brightness & Contrast:
    5000-5500cd/sqm Optimized for outdoor visibility under direct sunlight
    ★High waterproof grade:
    High waterproof grade: independent box design three-layer waterproof structure to achieve IP65 scale
    ★Support multiple Control Mode
    The device comes standard with  WiFi, Ethernet port, HDMI (optional), and wireless 4G(optional)
    ★Multi-screen synchronization：
    Advanced Lora technology to achieve multi-screen synchronization without delay
    ★Easy to maintain：
    All cases designed to open the door no more than three locks, hidden door lock design
    ★Box Design：
    Adapt to the light pole design, the surface of paint treatment resistant to harsh environment, anti-corrosion  anti-oxidation



      •  Advantages

              • Easy Installation

                • Lightweight (≤28kg/cabinet) & modular design.

                • Front maintenance & slim profile (120mm)

              • Super Brightness

                • ≥5000 nits for sunlight-readable clarity.

                • Auto brightness adjustment (day/night modes)

              • Cost-Effective:
                Low power consumption

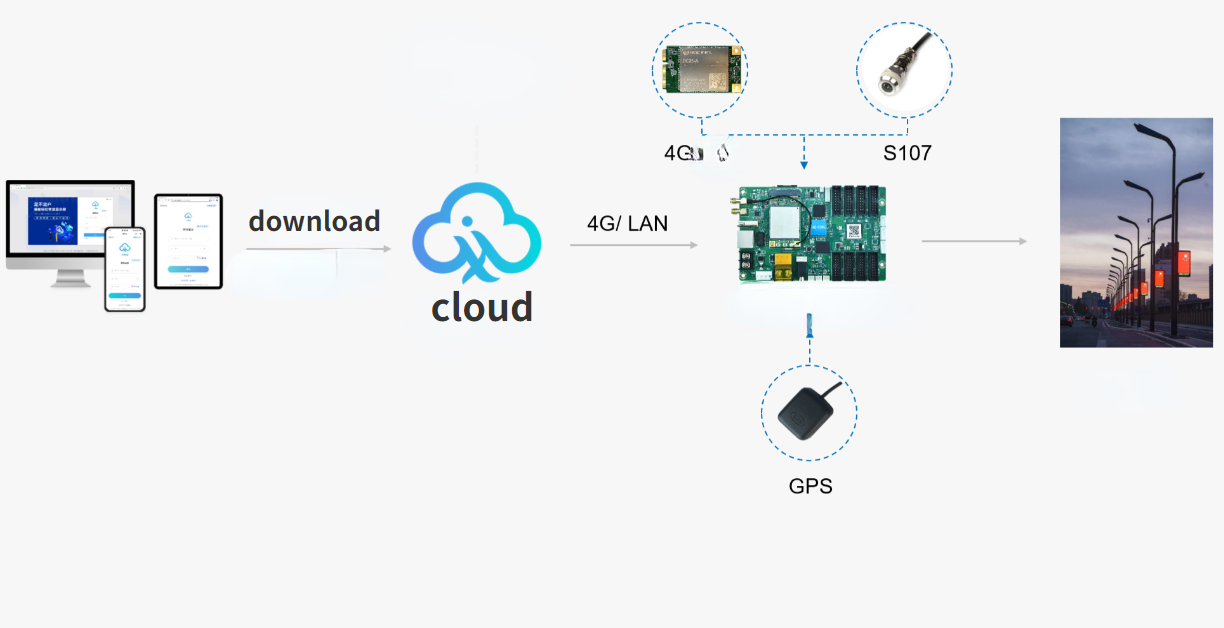

                Smart Control
                Remote updates via Wi-Fi/4G/Ethernet.
                High refresh rate (3840Hz) for smooth video.


    Applications

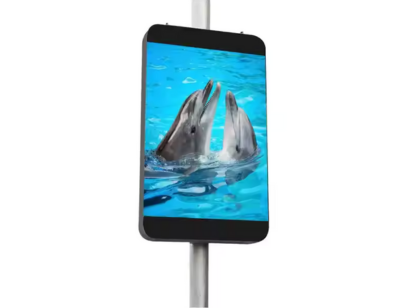

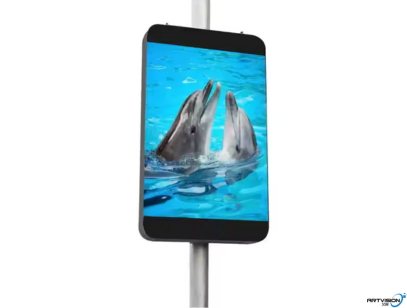

        • Streetlight/pole-mounted advertising.

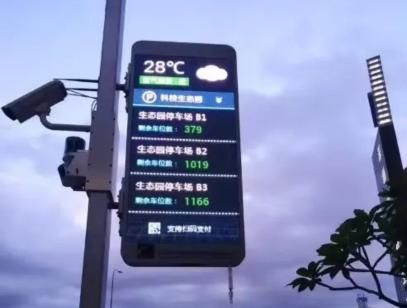

          Transportation hubs, parking guidance.
          Public event displays.


    Technical Specification

    •

     Item

    P4 Outdoor Street Advertising Light Pole LED Wall
    Led Module Dimension Size （W）320*160mm（H）
    Pixel pitch 4mm
    Pixel Density 62500/ M2
    Drive type 1/10Scan
    LED specification SMD1921
    Pixel resolution 80(W)*40（H）
    LED Cabinet LED cabinet size 640*960 or customized
    Cabinet resolution 160*240dots or others
    Outer cabinet size 740*1060mm
    Quantity of panel(pcs/sqm) 12
    Cabinet design Back access
    Material Steel
    Cabinet Weight（Kg） 27kg/set
    Cabinet view Single sided or Double sided
     Technical Parameter Driving device ICN2153 Constant current drive
    Refresh frequency 3840HZ
    Display color 4096*4096*4096
    Brightness 5000cd/M2
    IP Protection IP65
    Best viewing angle Horizontal >140  Vertical>140
    Best viewing distance 3M
    Working temperature -20-+60
    Panel power supply 5V60A
    Screen power supply 220/110 VAC/50HZ+_10%
    Max power  <800W/m²
    Average power  350W/m²
    Power quantity 300W/6PCS
    Life span 100000Hours
    Communication distance <100M
    Case
