1, Silicon rubber is chosen for waterproof protector. This material has high thermostability. We design three-protectors structure for waterproof.
2, The mask is designed with high capacity of impact resistence. Buffering arc-surface 'structure is applied for the mask shelter It can defuse the impact football, tennis ball and players.
3, New structure design. It can meet the needs of rental, perimeter and fix installation. This multi-functional cabinets makes the new items easily and conveniently applied in different occasions. And this structure make the seam of cabinets connection much small. During hanging.
3, New color collocation, the color contrast between the black cabinet body and silver-gray door makes the LED screen much more elegant

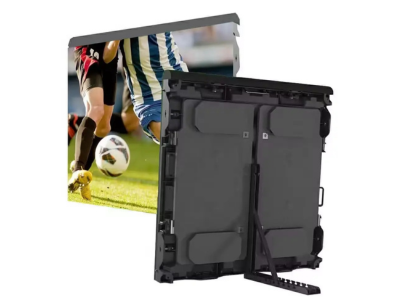

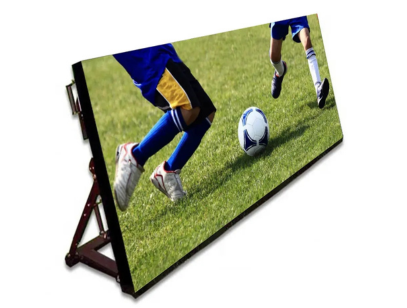

4, Angle adjustable back bracket. User can adjust the best display viewing angle for audience by the bracket. When rental and fix installation, the bracket can be folded on the cabinet.

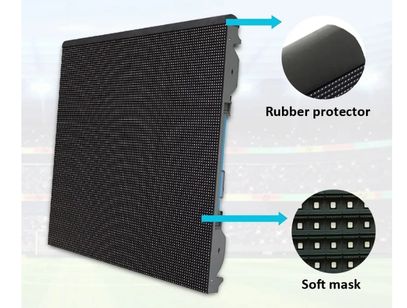

5, Rubber protector for top of cabinet to protect the player from injury.
6, Aluminum alloy is used for the cabinet to reduce weight, easy to move from this stadium to that stadium.
| Football led cabinets | ||
| LED Module | Item: | Parameter |
| Model: | PH8mm outdoor LED modules | |
| Pixel Pitch: | 8mm | |
| Pixel configuration: | SMD3in 1 or DIP RGB | |
| Module Size: | 256*128mm | |
| Module Resolution: | 32(W) * 16dots(H) | |
| Module Thickness: | 15MM | |
| Module Weight: | 0.4KG | |
| Package LED mode: | SMD3535 | |
| LED Cabinet | Cabinet Size: | (W)1024mm* (H)1024mm *(D)80MM |
| (Customize) | ||
| Cabinet Resolution: | 128*128dots | |
| Cabinet Material: | After maintenance cabinet | |
| Screen Parameters | Designed Screen Size | (W)1024MM * (H)1024MM =1.048SQM |
| Screen Resolution | (W)128 * (H)128= 16384pixels | |
| Max. Brightness | 6300cd/sqm | |
| Ingress Protection | Front/Rear: IP65 | |
| Best Viewing Distance | 5m-80m | |
| Driving Method | 1/8 scan or 1/4 scan | |
| Viewing Angle | Horizontal 120° ±10º; Vertical 120°±10º | |
| Brightness Control | R,G ,B 256 Grade/Each | |
| Colors Number | 4096 grey level, display 16.7M colors | |
| Refresh Rate | 1920Hz | |
| Frame Frequency | 60Hz | |
| Input Voltage | AC220V±15%,50Hz±2Hz | |
| Defects Rate | ≤0.0001 | |
| Power Consumption | Max.: 1000W/sqm Average: 450W/sqm | |
| MTBF | >10,000 hours | |
| Life span | ≥100,000 hours( 50% brightness) | |
| Humidity-operating | 10%~95% | |
| Temperature | Storage:-40℃~ + 85℃ | |
| Operation:-25℃~ + 45℃ | ||
| Control system | Asynchronous or synchronous | |
| Power supply | CLTZ 200W | |
| Input signal | Video, VGA, DVI/HDMI | |
| Driver IC | 5020 Driver | |
| 5020 Driver | Outdoor Fixed | |
