P1.538 GOB LED Poster Screen for Portable Advertising

 Tips：Click to zoom in

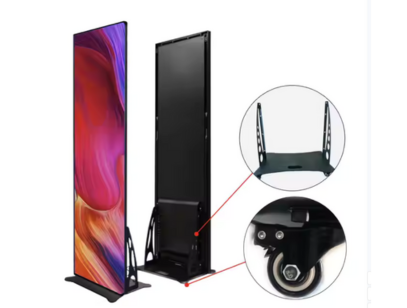

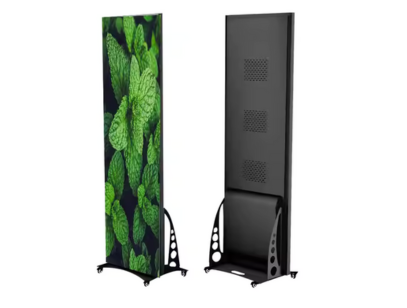

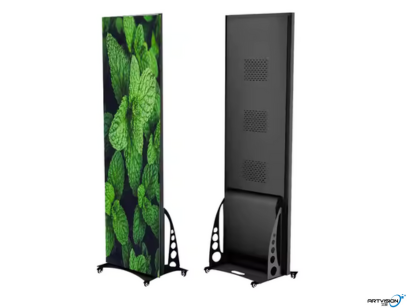

P1.538 GOB led poster
bottom shell with wheels
control mode
movable

Overview

  • The P1.538 GOB led poster is a cutting-edge display solution engineered for high-impact visual performance and robust durability. Designed for  indoor usage, it combines ultra-fine pixel pitch with Glue-on-Board (GOB) encapsulation technology to deliver stunning clarity, reliability, and longevity

  • Key Features

    ★GOB Technology for Enhanced Durability
    Advanced Glue-on-Board (GOB) can be adapted to any harsh
    environment for led display sceen to achieve true moisture, collision
    proof,waterproof, impact and UV resistance.
    ★Support seamless splicing of multiple
    It can be used as a single device and also supports seamless splicing of multiple devices into a large screen

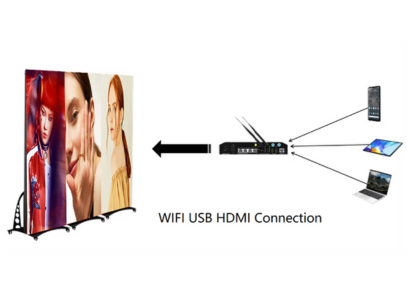

    ★Support multiple Control Mode
    The device comes standard with USB flash drive, WiFi, Ethernet port, HDMI (optional), and wireless 4G(optional)
    ★One click release of mobile app
    Support one click upload of content on mobile phones, a foolproof software that even beginners can easily operate
    ★ Integrated Swivel Wheels – Move Freely, Set Up Instantly:
    4 Heavy-Duty Lockable Casters: Smooth 360° mobility for
    effortless repositioning in event halls, showrooms, or retail stores.
    Sturdy Steel Base: Ensures stability during movement and
    operation.





      •  Advantages

                • GOB Durability: Outperforms traditional LED displays in harsh conditions while maintaining premium image quality.

                • Portability Meets Performance: Break free from bulky displays—achieve big-screen impact with minimal footprint.

                  Rugged Reliability: Built to withstand the demands of dynamic environments.

                  Scalale Creativity: Expand your canvas seamlessly for limitless visual possibilities


    Applications
        • Retail store promotions
          Trade shows and exhibitions
          Stage events and concerts
          Airport/transportation hubs

    Technical Specification

    •

     Item

    P1.538 GOB LED Poster Screen for Portable Advertising
    Led Module Dimension Size （W）320*160（H）
    Pixel pitch 1.538mm
    Pixel Density 425000/ M2
    Drive type 1/52Scan
    LED specification SMD1212
    Pixel resolution （W）208*104（H）
    Protection GOB technical
    LED Poster LED Display size 640*1920mm
    Display resolution 416*1248
    Quantity of panel(pcs/sqm) 24
    Cabinet design  Front access
    Material Steel
    Cabinet Weight（Kg） 40kg/set
     Technical Parameter Driving device ICN2153 Constant current drive
    Refresh frequency 3840HZ
    Display color 4096*4096*4096
    Brightness 800cd/M2
    IP Protection IP65 in front and IP31 in back
    Best viewing angle Horizontal >140  Vertical>140
    Best viewing distance 1.5-20M
    Working temperature -20-+60
    Panel power supply 5V40A
    Screen power supply 220/110 VAC/50HZ+_10%
    Max power  <800W/m²
    Average power  350W/m²
    Power quantity 200W/6PCS
    Life span 100000Hours
    Communication distance <100M
