P8 Logo /Round double sided led sign

 Tips：Click to zoom in

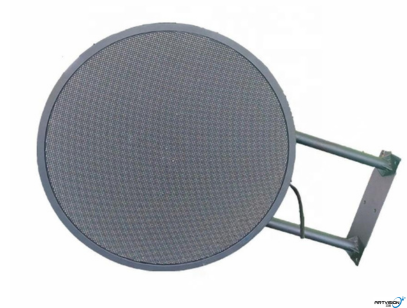

Logo /Round double sided led sign

Specific shape LED sign board, showing excellent color, large viewing angle and clear image.
Double sided sign board design, suitable for advertising in shops, malls, business center ,cafe Semi-outdoor and outdoor use, with IP65protective grade.
Simple installation and easy operation, for playing video, text, pictures etc. various formats.
Playing content can be saved into internal 8GB storage.

Pixel 8 mm
Pixel Configuration SMD3535 1R1G1B

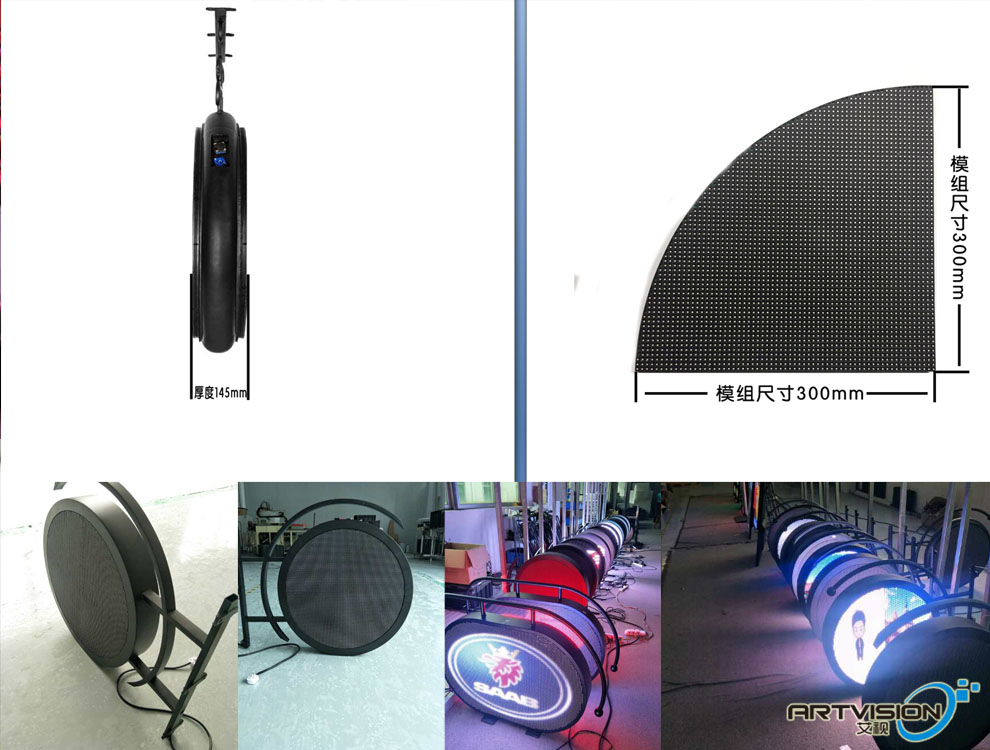

Unit size Φ600*90 mm
Pixel density/unit 64*64pixels /unit
Cabinet Material Steel Cabinet
Driving Method Constant current drive, 1/8Scanning
Optimal Viewing Distance ≥8 m
Best Viewing Angle Horizontal120° Vertical 120°
Brightness ≥4500mcd
Grey Scale 16 bit
Color Temperature 2000K-9500k adjustable
Refresh Rate ≥1920Hz
Frame Rate ≥ 60 frames/sec
Defect Rate ≤0.0001
Control Mode Asynchronous
Data Transfer Method USB/WIFI
MTBF >10,000 hours
Life span ≥100,000 hours
Protective Grade IP64
Operating Temperature ﹣30℃～50℃
Operating Humidity 10%～90%
Input Voltage AC110-240V / 50Hz-60Hz
Power Consumption Max: 180w/㎡; Average:100w/㎡
Weight Approx. 10.7kg/unit

* Specific shape LED sign board, showing excellent color, large viewing angle and clear image.

* Double sided sign board design, suitable for advertising in shops, malls, etc.

* Semi-outdoor and outdoor use, with IP65protective grade.

* Simple installation and easy operation, for playing video, text, pictures etc. various formats.

* Playing content can be saved into internal 8GB storage.

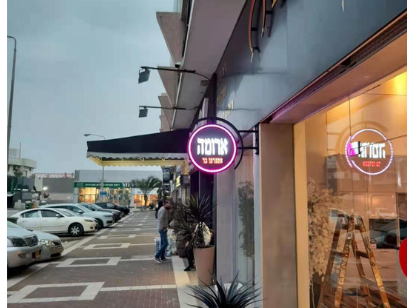

Cases
