Product Features

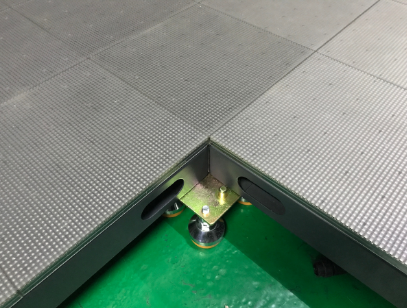

1.Supporting Rail frame(height 75mm):
Supporting rail frame is 500mm or 1,000mm/PCS,and in the middle there are trunking design for power & signal cables, which helps you fast installation.
2.Loading weight:800-1000kg/sqm,no problem for a car driving on it
3.Waterproof IP54&IP65:
Indoor or outdoor usage
4.Play HD videos or interactive games
Supporting rail frame is 500mm or 1,000mm/PCS,and in the middle there are trunking design for power & signal cables, which helps you fast installation.
2.Loading weight:800-1000kg/sqm,no problem for a car driving on it
3.Waterproof IP54&IP65:
Indoor or outdoor usage
4.Play HD videos or interactive games
Applications
Suitable for wedding ,parties,night club,commerical activities
Technical Index
P6.25 dance floor

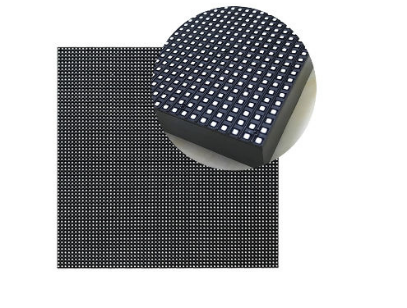

| Led module | Pixel Pitch | 6.25mm |
| Pixel Configuration | SMD1921 | |
| Module Resolution | 40*40dots | |
| Module Pixles | 1600dots | |
| Module Size | 250*250mm | |
| LED cabinets | Cabinet Size(W*H*D) | 500*1000*80mm |
| Cabinet Resolution | 80*160 | |
| Module Quanity | 8 pcs | |
| Cabinet Pixels | 12800 | |
| Material | Iron or Die-casting | |
| whole led display | Brightness | ≥3500cd/㎡ |
| Pixel Density | 25600dots/m2 | |
| Driving Method | 1/10scan constant current | |
| View Angle | 120H,120V | |
| Optimal Viewing Distance | ≥3meters | |
| Brightness Control | Red,Green and Blue 4096 Grade/Each | |
| Fresh requency | ≥3840Hz | |
| Frame Frequency | 50Hz | |
| Input Voltage | AC240V/50Hz | |
| Defects Rate | ≤0.00001 | |
| Power Consumption | Max:800W/Cabinet Average:400W/Cabinet | |
| Screen weight | 20KG/Cabinet | |
| MTBF | >10,000 hours | |
| Life span | ≥100,000 hours | |
| Protective Grade | IP54&IP65 | |
| Temperature-operating | ﹣35℃～50℃ | |
| Humidity-operating | 10%～95% | |
| Color depth | 16 bit | |
| Controlling system | Nova(Sending Card,Receiving Cards and Hubs) | |
| Operating System | Windows XP/7/8/10 |
Case
