P3 Outdoor Full color LED Display screen

 Tips：Click to zoom in

Overview

  • The P3 Outdoor LED Display is engineered to deliver exceptional visual performance for outdoor applications that demand a balance of resolution, durability, and cost-effectiveness. With a pixel pitch of 3mm, this display combines high pixel density with robust outdoor capabilities, ensuring vivid imagery, smooth video playback, and reliable operation in diverse weather conditions. Ideal for mid-to-large-scale installations, the P3 LED display offers superior clarity for audiences at moderate viewing distances.

  • Key Features

    1.High Pixel Density & Resolution

    • Pixel Pitch: 3.0mm

    • Pixel Density: 111,111 pixels per square meter (optimized for mid-range viewing).

    • Resolution: LED module 192x192 mm, supporting Full HD and 4K content upscaling.

    The 3mm pixel pitch ensures sharp imagery and readability for text, graphics, and videos, making it suitable for dynamic advertising and information displays.



    2.Outstanding Visual Performance

    • Brightness: 5000 nits (adjustable) for visibility in direct sunlight or bright environments.

    • Contrast Ratio: 4,500:1 for rich color depth and enhanced detail.

    • Refresh Rate: 3,840Hz, minimizing flicker and ensuring smooth motion handling.

    • Color Gamut: 16-bit processing, covering 90% NTSC for lifelike color reproduction.

    •

    3.Rugged Outdoor Durability

    • IP Rating: IP65 certified for full protection against dust, rain, and moisture.

    • Temperature Range: Operates reliably in extreme temperatures (-30°C to +60°C).

    • Anti-UV & Anti-Glare: Surface treatment to resist sunlight degradation and reduce reflections.

    •  Advantages

              • Optimal Balance: Delivers high resolution at a competitive price point, ideal for medium-sized installations.

              • Adaptability: Performs flawlessly in harsh outdoor environments with minimal maintenance.

              • Energy Efficiency: Advanced LED drivers and low-power SMD technology reduce operational costs.

Applications

      • The P3 Outdoor LED display is perfect for high-impact outdoor installations:

        • Digital Billboards: Engage audiences with vibrant advertisements.

        • Stadiums & Arenas: Broadcast live events and replays in crisp detail.

        • Public Spaces: Display real-time information, news, or emergency alerts.

        • Retail & Hospitality: Enhance branding with dynamic content.

          Technical Specification

          •



           Item P3 Outdoor LED Display:Precision,Power and Performance For Outdoor

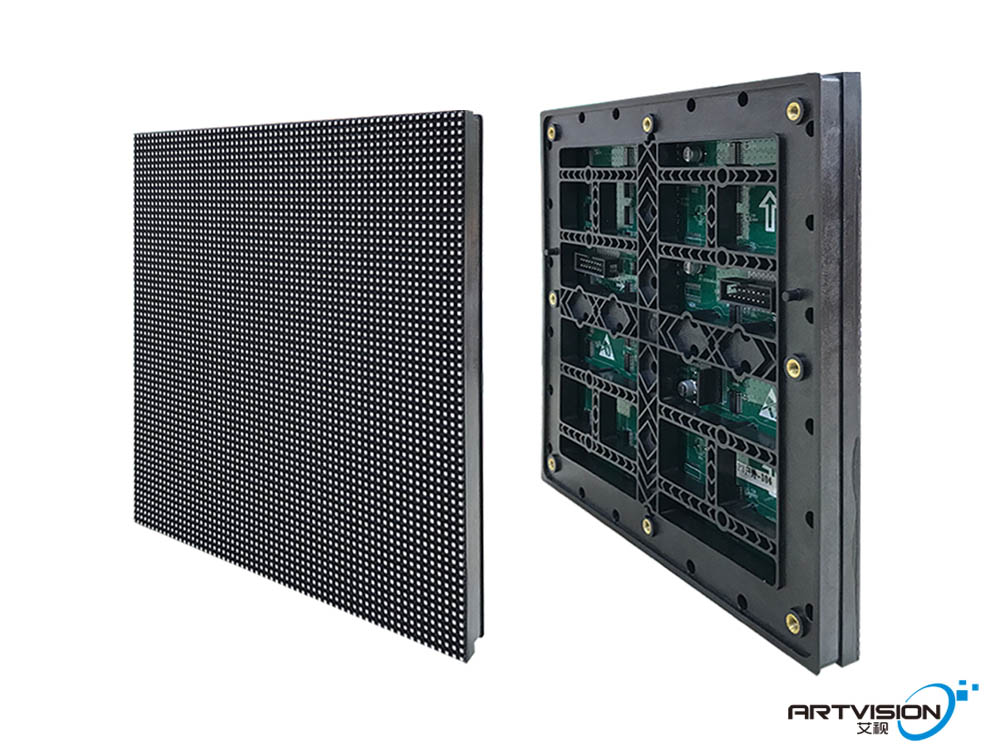

          Led Module Dimension Size （W）192*192（H）
          Pixel pitch 3mm
          Pixel Density 111111/ M2
          Drive type 1/16Scan
          LED specification SMD1415
          Pixel resolution （W）64*64（H）
          Average  power 16W
          Panel current 6A
          Panel weight 0.49KG

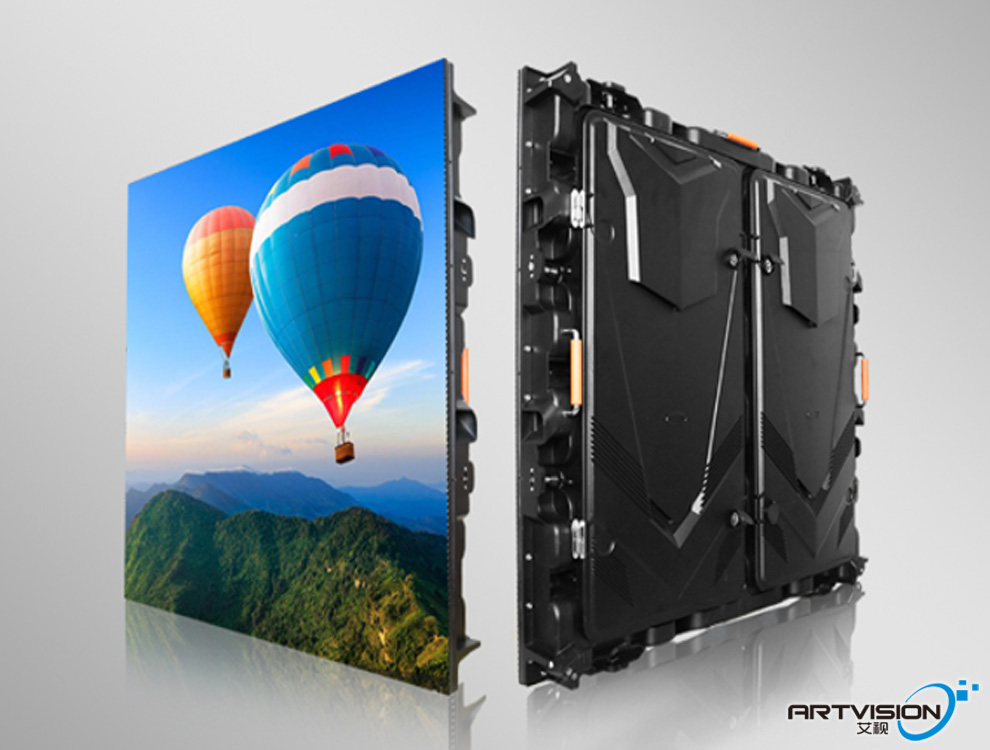

          LED Cabinet LED cabinet size 576*576mm/960*960mm
          Cabinet resolution 192*192/320*320dots
          Quantity of panel(pcs/Cabinet) 9/25
          Cabinet design Back access
          Material Die-casting/Steel
          Received card MRV412/DH7508S
          Panel power supply 5V40A
           Technical Parameter Driving device 16380/ICN2153 Constant current drive
          Refresh frequency 3840HZ
          Display color 4096*4096*4096
          Brightness 5000cd/M2
          IP Protection IP65
          Best viewing angle Horizontal >140  Vertical>140
          Best viewing distance 2.5-50M
          Working temperature -20-+60
          Panel power supply 5V40A
          Screen power supply 220/110 VAC/50HZ+_10%
          Max power  <1000W/m²
          Average power  250W/m²
          Power quantity 200W/5PCS
          Life span 100000Hours
          Communication distance <100M

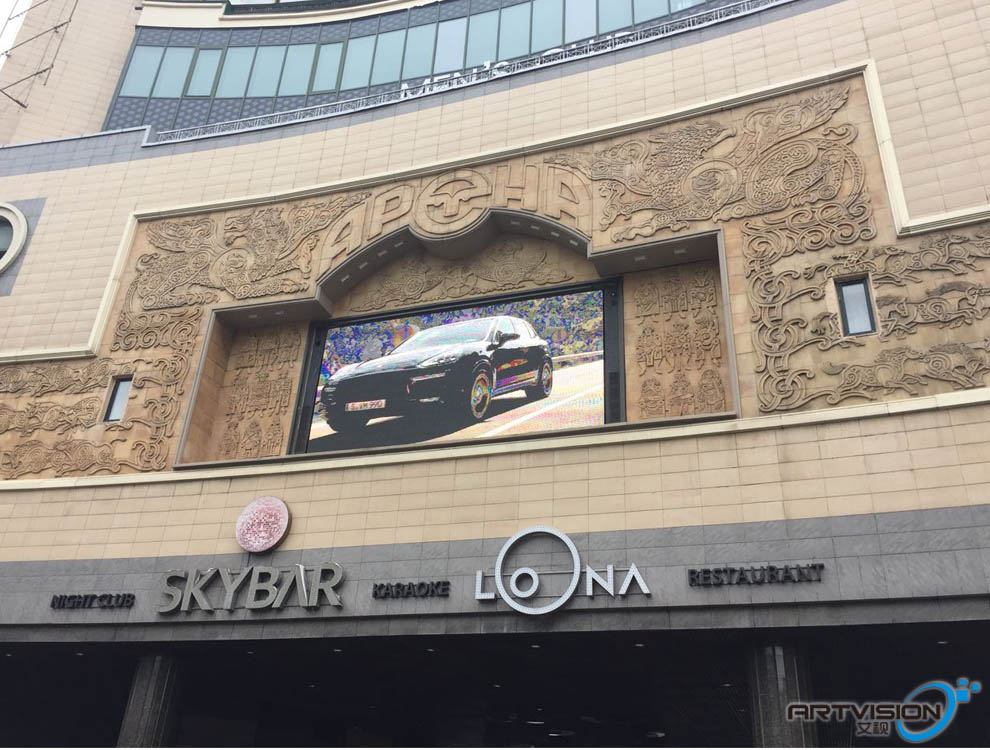

Cases
