P2 Outdoor HD Video Advertising LED Wall

 Tips：Click to zoom in

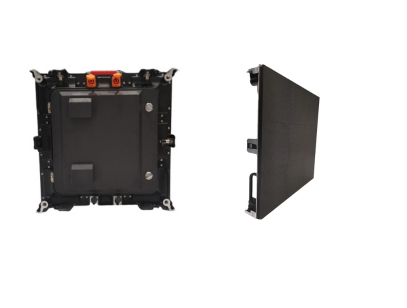

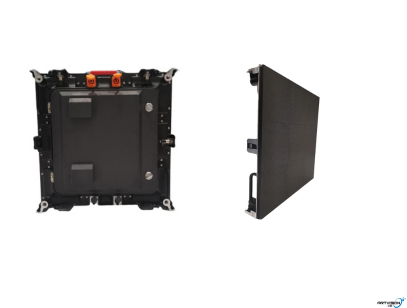

Die-casting led cabinet

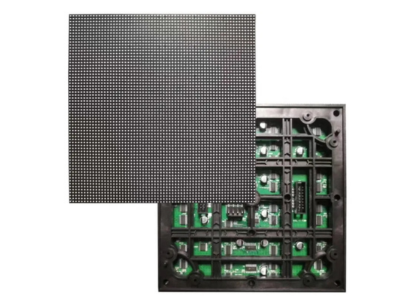

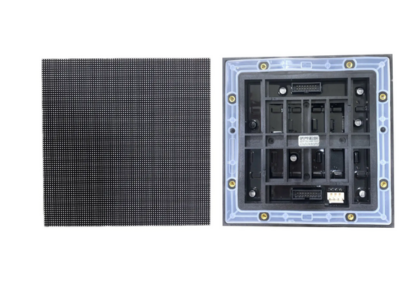

P2 led module

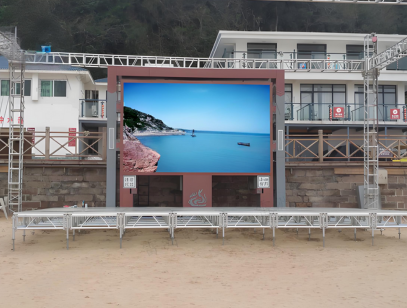

outdoor led display

Overview

  • The P2 Outdoor LED Display is a high-resolution, weatherproof solution designed for outdoor applications requiring exceptional brightness, durability, and visual performance. Built with die-cast aluminum cabinets and advanced pixel technology, it delivers seamless visuals for advertising, live events, sports venues, and public information displays.

  • Key Features

    ★ Standard universal 160*160mm  module.
    ★ High quality lamp beads, after multiple high and low temperature experiments and scanning stratification instrument detection, cost-effective, stable performance.
    ★Standard modules between the box common, shorten customer delivery time, customers in the replacement of different point spacing products can be common steel structure;
    ★ High brightness, high refresh, high protection level, suitable for outdoor media advertising and other occasions.
    ★ Independently developed and produced kits, face masks, vertical and horizontal reinforcement design, efficient dust protection, uniform ink, solid and smooth, anti-UV module kits, to ensure that the screen body flat without deformation, better display effect.
    ★ Modular design, low installation and maintenance cost, fast speed, and can be electrically plugged.
    ★ Mainly used in outdoor advertising media, government and enterprise projects, cultural tourism, sports competitions, image publicity, commercial real estate fields.

    •  Advantages

              • High Brightness: 5000nits ensures visibility in direct sunlight.

              • Robust Protection: IP65 rating for dust and water resistance.

              • Lightweight & Durable: Die-cast aluminum cabinets for longevity and portability.

              • High Refresh Rate: Eliminates flicker for smooth video playback.

              • Energy Efficient: Intelligent brightness adjustment based on ambient light.

            •

Applications

Outdoor advertising billboards
Transportation hubs (airports, train stations)
Live events and concerts
Retail and hospitality signage

Technical Specification

  •

 Item

 P2 Outdoor HD Video Advertising LED Wall
Led Module Pixel pitch 2mm
LED packaging SMD1212
Pixel Density 250000/ M2
Module size （W）160*160（H）
Module Resolution (W)80*80(H)
Drive type 20 scan
LED Cabinet LED cabinet size 480*480mm
Cabinet resolution 240*240 dots
Quantity of panel(pcs/Cabinet) 9
Cabinet design Back access
Material Die-casting
Received card MRV412/DH7508S
Cabinet weight 5kg/set
 Technical Parameter Driving device 16380/ICN2153 Constant current drive
Refresh frequency 3840HZ
Display color 4096*4096*4096
Brightness 5000cd/M2
IP Protection IP65
Best viewing angle Horizontal >140  Vertical>140
Best viewing distance 2.5-50M
Working temperature -20-+60
Humidity-operating 10%～95%
Defects Rate ≤0.00001
Panel power supply 5V60A
Screen power supply 220/110 VAC/50HZ+_10%
Max power  <1000W/m²
Average power  320W/m²
Power quantity 300W/9PCS
Life span 100000Hours
Communication distance <100M
