P3.076 SMD outdoor Pantallas LED

 Tips：Click to zoom in

Overview

  • The P3.076 Outdoor LED Display is engineered to deliver superior visual performance for outdoor environments where precision and reliability are paramount. Featuring a fine pixel pitch of 3.076mm and a compact module size of 320mm x 160mm, this display combines high pixel density with rugged durability, ensuring crisp imagery, vivid colors, and seamless video playback even in challenging weather conditions. Designed for mid-to-long viewing distances, it is ideal for applications demanding clarity and impact.


  • Key Features

    1.High Pixel Density & Resolution

    • Pixel Pitch: 3.076mm

    • Pixel Density: 105,600 pixels per square meter.

    • Module Resolution: 104 x 52 pixels per module (320mm x 160mm).

    • Scalability: Effortlessly assemble modules to achieve Full HD, 4K, or custom resolutions for large-scale installations.

    The 3.076mm pixel pitch ensures sharp visuals with minimal pixelation, perfect for dynamic content such as advertisements, live broadcasts, and informational displays.


    • 2.Exceptional Visual Performance

      • Brightness: 5000 nits (adjustable), optimized for visibility in direct sunlight.

      • Contrast Ratio: 4,500:1 for deep blacks and vibrant color reproduction.

      • Refresh Rate: 3,840Hz, eliminating flicker and motion blur for smooth video playback.

      • Color Accuracy: 16-bit color depth, covering 90% NTSC gamut for lifelike visuals.

      •

    3.Robust Outdoor Durability

    • IP Rating: IP65 certified for complete protection against dust, rain, and moisture.

    • Temperature Range: Operates reliably in extreme temperatures (-30°C to +60°C).

    • Anti-Glare & Anti-UV: Surface treatment to reduce reflections and resist sunlight degradation.

    •  Advantages

                • Precision Clarity: The 3.076mm pitch bridges the gap between cost and resolution, ideal for mid-range viewing.

                • Durability: Engineered for harsh outdoor conditions with minimal maintenance requirements.

                • Energy Efficiency: Advanced SMD LED technology reduces power consumption by 20% compared to conventional models.

            •

Applications

    • The P3.076 LED display excels in diverse outdoor scenarios:

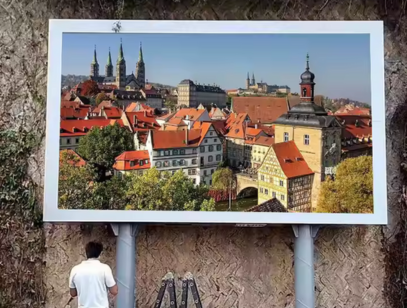

      • Digital Billboards: Captivate audiences with high-resolution ads in urban centers or highways.

      • Sports Arenas: Broadcast live action and replays with clarity for large crowds.

      • Transportation Hubs: Display real-time schedules, maps, and emergency alerts.

      • Event Stages: Enhance concerts and festivals with immersive visuals.


Technical Specification

  •

 Item

 Technical parameter:P3.076 SMD outdoor Pantallas LED

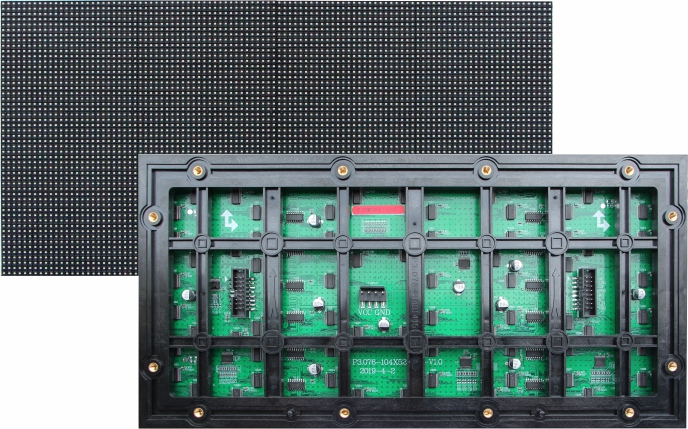

Led Module Dimension Size （W）320*160（H）
Pixel pitch 3.076mm
Pixel Density 105625/ M2
Drive type 1/13Scan
LED specification SMD1415
Pixel resolution （W）104*52（H）
Average  power 15W
Panel current 7.5-8A
Panel weight 0.4KG

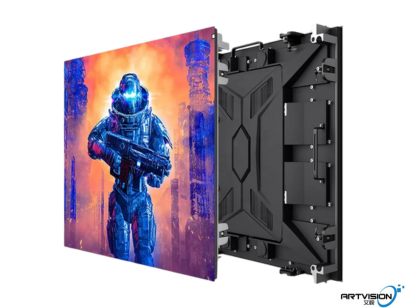

LED Cabinet LED cabinet size 640*640mm/960*960mm
Cabinet resolution 208*208/312*312dots
Quantity of panel(pcs/Cabinet) 8/18
Cabinet design Back access
Material Die-casting/Steel
Received card MRV412/DH7508S
Panel power supply 5V40A
 Technical Parameter Driving device 16380/ICN2153 Constant current drive
Refresh frequency 3840HZ
Display color 4096*4096*4096
Brightness 4500cd/M2
IP Protection IP65
Best viewing angle Horizontal >140  Vertical>140
Best viewing distance 2.5-50M
Working temperature -20-+60
Panel power supply 5V40A
Screen power supply 220/110 VAC/50HZ+_10%
Max power  <800W/m²
Average power  360W/m²
Power quantity 200W/4PCS
Life span 100000Hours
Communication distance <100M
