P4 Outdoor Advertising LED Videowall(320*160mm)

 Tips：Click to zoom in

Overview

  • The P4 Outdoor LED Display is a high-performance, cost-effective solution designed for large-scale outdoor applications requiring clarity and durability. With a pixel pitch of 4mm and a compact module size of 320mm x 160mm, this display delivers vibrant visuals, seamless video playback, and robust performance in harsh environmental conditions. Its optimized pixel density ensures excellent image quality for mid-to-long viewing distances, making it ideal for advertising, public information displays, and event staging.

  • Key Features

    1.Balanced Pixel Density&Resolution

      • Pixel Pitch: 4.0mm

      • Pixel Density: 62,500 pixels per square meter.

      • Module Resolution: 80 x 40 pixels per module (320mm x 160mm).

      • Scalability: Seamlessly assemble modules to achieve Full HD, 4K, or custom resolutions.

      The 4mm pixel pitch balances resolution and viewing distance, delivering crisp visuals for audiences positioned 6–50 meters away.

      2.      Superior Outdoor Performance

      • Brightness: 6,000 nits (adjustable) for visibility in direct sunlight.

      • Contrast Ratio: 4,000:1 for enhanced color depth and detail.

      • Refresh Rate: 3,840Hz, minimizing flicker and ensuring smooth motion.

      • Color Accuracy: 16-bit color depth, 85% NTSC gamut coverage for lifelike visuals.


    3.Rugged Construction

    • IP Rating: IP65 certified for full protection against dust, rain, and humidity.

    • Temperature Range: Stable operation from -30°C to +60°C.

    • Anti-Glare Surface: Reduces reflections and resists UV damage for consistent outdoor performance.

    •  Advantages

              • Cost Efficiency: Optimal balance of resolution and price for large-scale projects.

              • Durability: Built to withstand extreme weather, vandalism, and long-term use.

              • Energy Saving: Advanced LED driver technology reduces power consumption by 25% compared to traditional models.

            •

Applications

    • The P4 LED display is engineered for versatility in large outdoor settings:

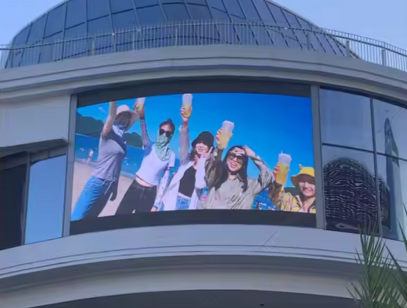

      • Advertising Billboards: High-impact ads for highways, plazas, and shopping centers.

      • Stadiums & Event Venues: Live broadcasts and scoreboards with wide visibility.

      • Transportation Hubs: Real-time schedules, maps, and emergency alerts.

      • Corporate Campuses: Branding and information displays in outdoor spaces.


Technical Specification

  •

 Item

 Technical parameter:P4 Outdoor Rental LED Display

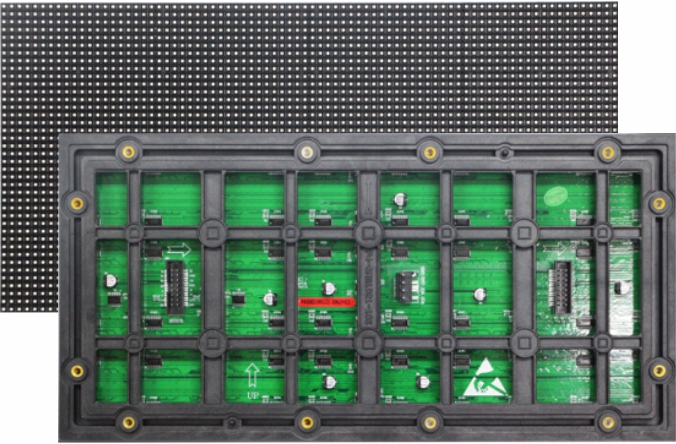

Led Module Dimension Size （W）320*160（H）
Pixel pitch 4mm
Pixel Density 62500/ M2
Drive type 1/10Scan
LED specification SMD1921
Pixel resolution （W）80*40（H）
Average  power 16W
Panel current 8A
Panel weight 0.45KG

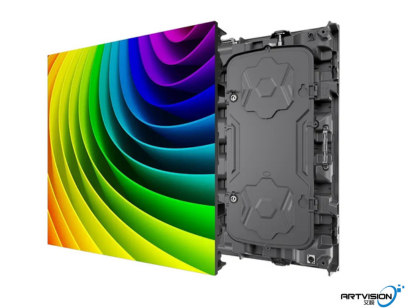

LED Cabinet LED cabinet size 640*640mm/960*960mm
Cabinet resolution 160*160/240*240dots
Quantity of panel(pcs/Cabinet) 8/18
Cabinet design Back access
Material Die-casting/Steel
Received card MRV412/DH7508S
Panel power supply 5V40A
 Technical Parameter Driving device 16380/ICN2153 Constant current drive
Refresh frequency 3840HZ
Display color 4096*4096*4096
Brightness 4500cd/M2
IP Protection IP65
Best viewing angle Horizontal >140  Vertical>140
Best viewing distance 2.5-50M
Working temperature -20-+60
Panel power supply 5V40A
Screen power supply 220/110 VAC/50HZ+_10%
Max power  <1000W/m²
Average power  300W/m²
Power quantity 200W/4PCS
Life span 100000Hours
Communication distance <100M
