P10 Outdoor Smd led panel

 Tips:Click to zoom in
Products Advantage
1.Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2.Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps
3.Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4.Service advantage: Better service at same situation, better cooperation at same service!

Product features
1.High Contrast ratio: 4000:1,A very high level to ensure a vivid image of our LED display screen system.
2. Clear vivid image quality:Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.
3.. Long-term Brightness:6000-nit brightness
4. Easy Installation & Using:Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
5.Convenient Servicing:Front and rear cabinet access makes the maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.

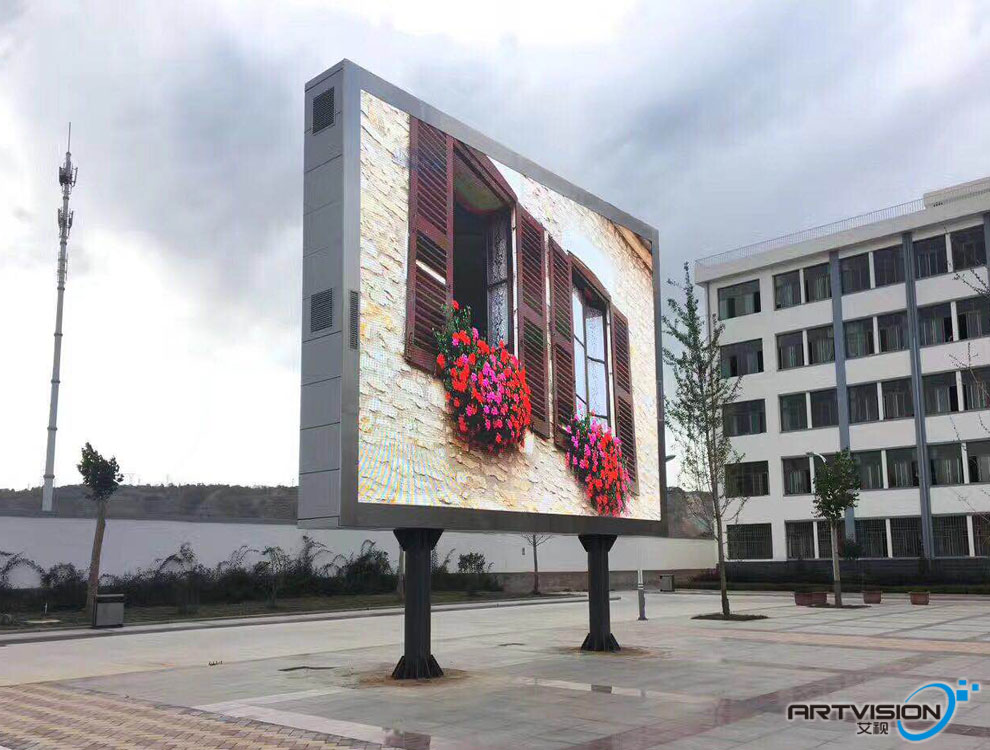

Applications
physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment

Technical Index

Pixel Pitch P10
Pixel Density 10000dots/sqm
Pixel color RGB SMD RGB

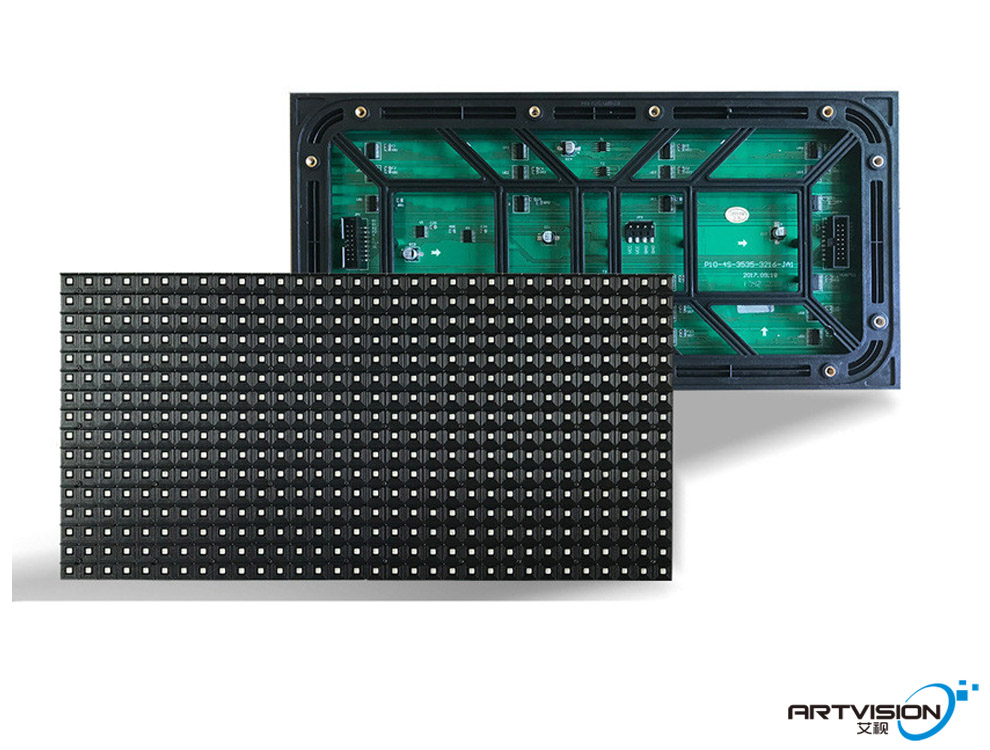

Module Size 320mm*160 mm
Module Resolution 32*16 dots

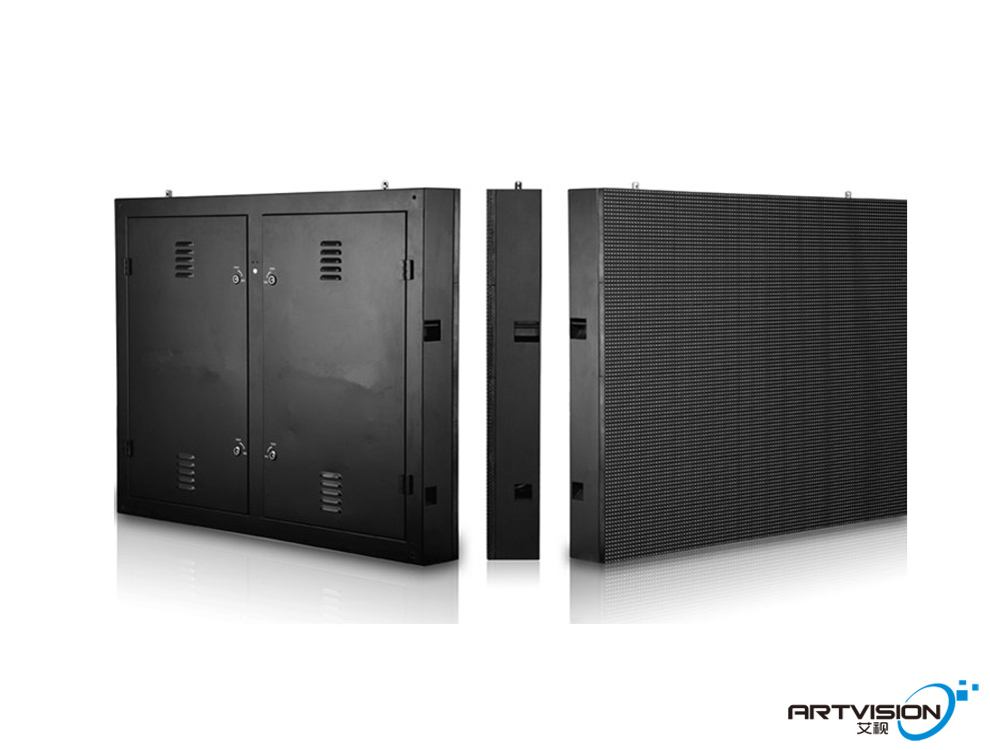

Cabinet szie 960mm*960mm
Cabinet Resolution 96*96
Cabinet Weight 40kg/cabinet
View angle H:160; V:120
Brightness ≥6000cd/sqm
Power Consumption 450 w/sqm
Drive Mode 1/2scan
Working condition -15~45℃
Humidity -10%-95%
Life Span Time ≥100000 hours
