P6 outdoor SMD LED Video Screen

 Tips:Click to zoom in
Products Advantage
1.Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2.Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps
3.Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4.Service advantage: Better service at same situation, better cooperation at same service!

Product features
1.High Contrast ratio: 4000:1,A very high level to ensure a vivid image of our LED display screen system.
2. Clear vivid image quality:Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.
3.. Long-term Brightness:6000-nit brightness
4. Easy Installation & Using:Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
5.Convenient Servicing:Front and rear cabinet access makes the maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.

Applications

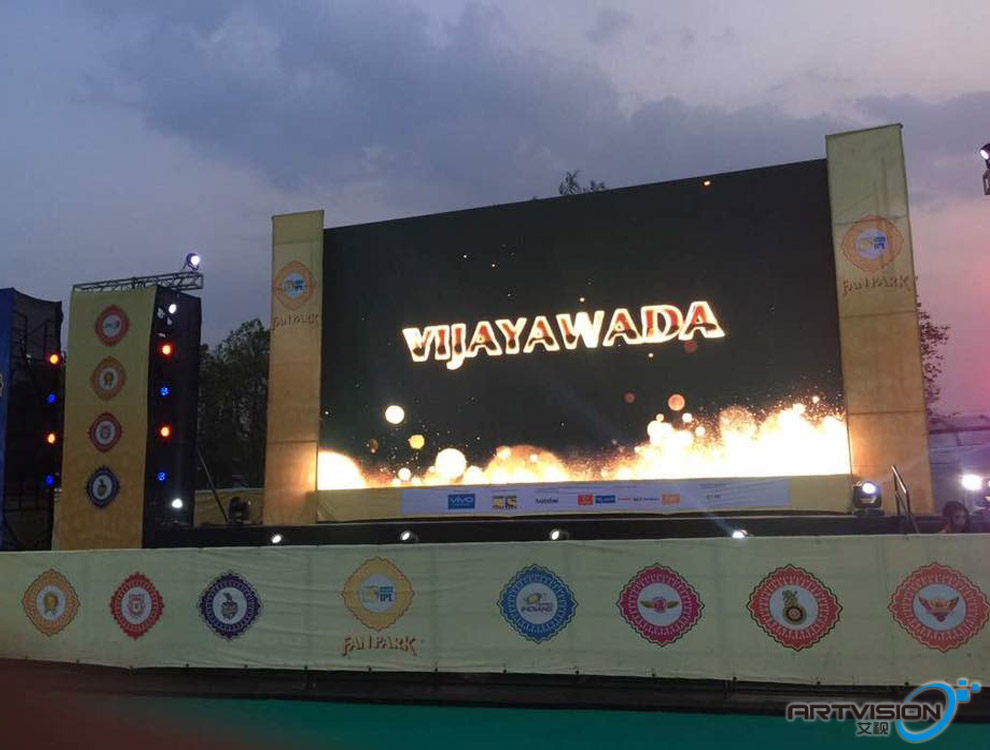

physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment

Technical Index

Pixel Pitch P6
Pixel Density 27778 dots/sqm
Pixel color RGB  SMDRGB

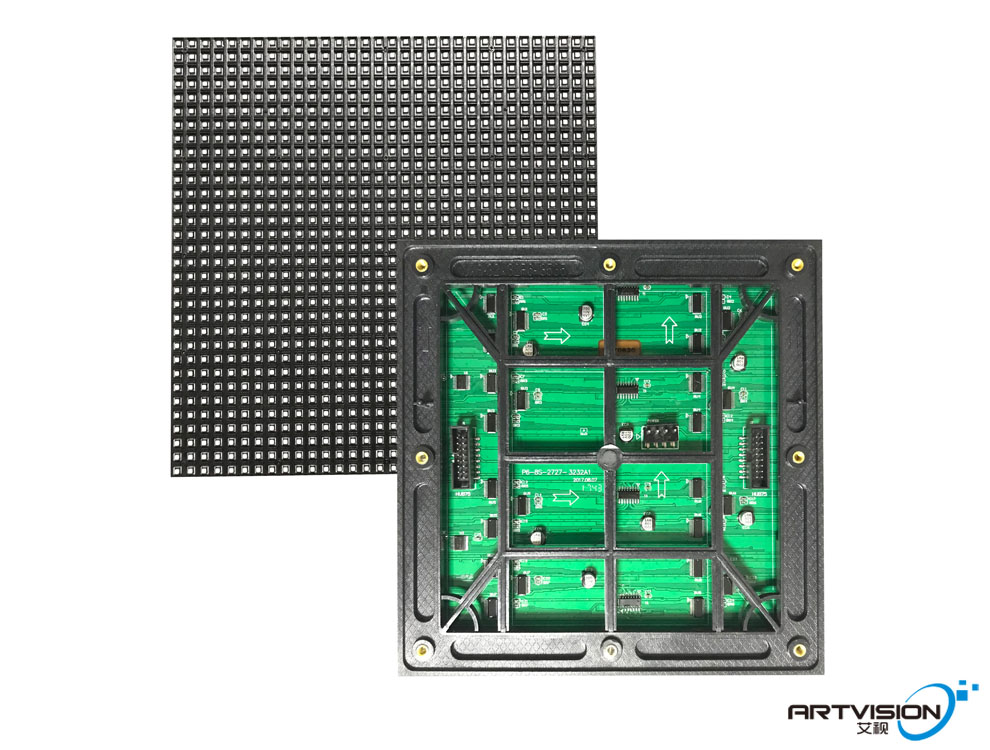

Module Size 192mm*192 mm
Module Resolution 32*32 dots

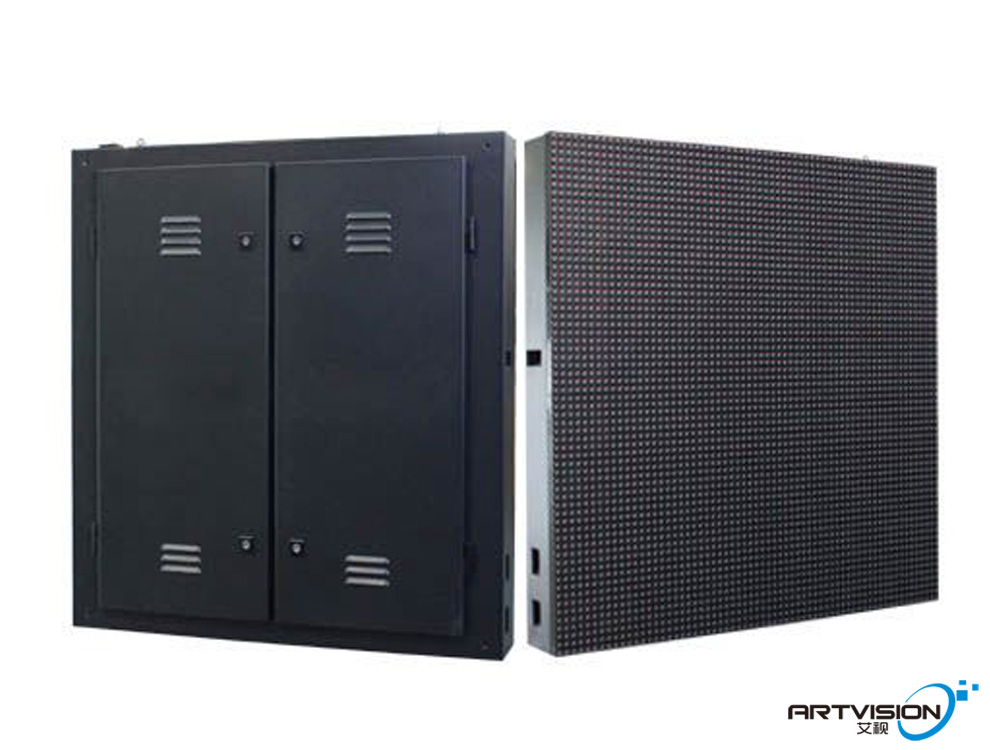

Cabinet szie 960mm*960mm
Cabinet Resolution 160*160
Cabinet Weight  40kg/cabinet
View angle H:160; V:120
Brightness ≥6000cd/sqm
Power Consumption 420 w/sqm
Drive Mode 1/8scan
Working condition -15~45℃
Humidity -10%-95%
Life Span Time ≥100000 hours
