Product Features
SMD outdoor front&back access led display
✅ Multi Function: aluminum cabinet for rental,iron cabinet for fixed

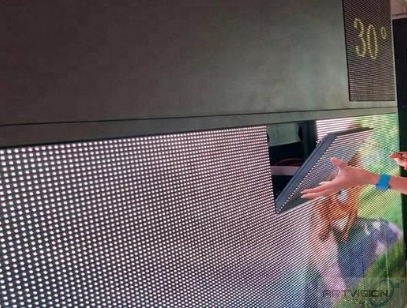

✅ Front&back access :take it out directly from the front and back
✅ IP65 waterproof Standard cabinet
✅ Easy installation
✅Thin and light:whicn can reduce the delivery cost and installation cost
✅ Front&back access :take it out directly from the front and back
✅ IP65 waterproof Standard cabinet
✅ Easy installation
✅Thin and light:whicn can reduce the delivery cost and installation cost
Applications
P4.81 led outdoor video cabinets widely used in Rental or fixedl without back space for structure body or maintaining
Technical Index

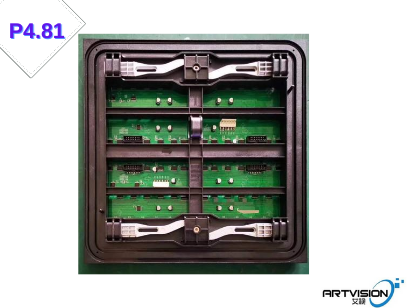

P4.81 outdoor rental led video wall| Led module | Pixel Pitch | 4.81mm |
| Pixel Configuration | SMD1921 | |

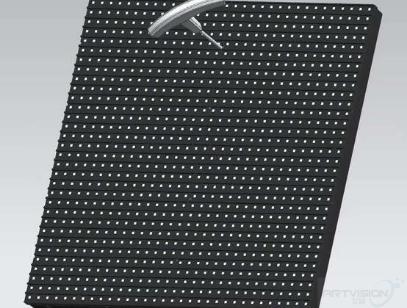

| Module Resolution | 52*52dots | |
| Module Pixles | 4096dots | |
| Module Size | 250*250mm | |
| LED cabinets | Cabinet Size(W*H*D) | 500*500*90mm or 500*1000*90mm |
| Cabinet Resolution | 104*104dots or 104*208 | |
| Module Quanity | 4pcs or 8 pcs | |
| Cabinet Pixels | 10816dots or 21632 | |
| Material | Die Casting Aluminum | |
| whole led display | Brightness | ≥5000cd/㎡ |
| Pixel Density | 43222dots/m2 | |
| Driving Method | 1/13 scan constant current | |
| View Angle | 120H,120V | |
| Optimal Viewing Distance | ≥5meters | |
| Brightness Control | Red,Green and Blue 4096 Grade/Each | |
| Fresh requency | ≥3840Hz | |
| Frame Frequency | 50Hz | |
| Input Voltage | AC240V/50Hz | |
| Defects Rate | ≤0.00001 | |
| Power Consumption | Max:190W/Cabinet Average:95W/Cabinet | |
| Screen weight | 8.5KG/Cabinet | |
| MTBF | >10,000 hours | |
| Life span | ≥100,000 hours | |
| Protective Grade | IP65 | |
| Temperature-operating | ﹣35℃～50℃ | |
| Humidity-operating | 10%～95% | |
| Color depth | 16 bit | |
| Controlling system | Nova or Colorlight(Sending Card,Receiving Cards and Hubs) | |
| Operating System |
Windows XP/7/8/10 |
