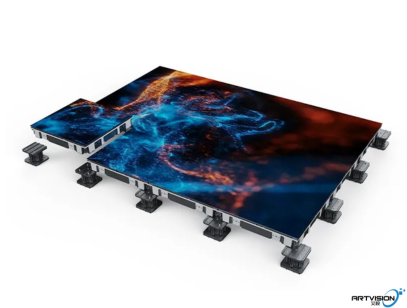

P2.604 interactive indoor led dance floor screen

 Tips：Click to zoom in
P2.604 led floor

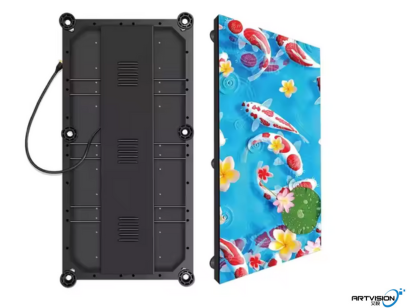

500*1000 led cabinet

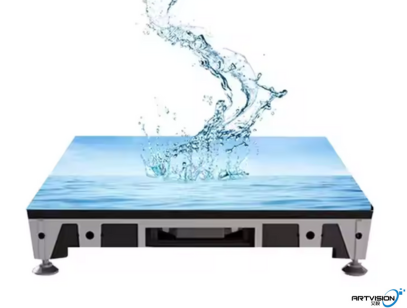

waterproof
interactive led floor

Overview

  • The P2.604 interactive indoor led dance floor screen is a high-resolution, ultra-durable display system engineered for immersive interactive experiences. Featuring a finer pixel pitch and enhanced responsiveness, this solution is perfect for applications requiring vivid visuals and real-time interaction, such as gaming zones, retail spaces, exhibitions, and public installations.

  • Key Features

    ★High Load Capacity & Impact Resistance :
    Load Capacity: 1,000–2,000 kg/m², supporting activities like dancing, jumping, and even Car on it
    Reinforced Structure: Engineered with high-strength materials and shock-absorbing layers to withstand intense impacts and prolonged use.
    ★Built-in Sensing Technology
    Integrated Sensing Chips: Embedded inside the LED modules, the sensing chips interact with an external interaction controller to detect real-time movement.
    Interactive Experience: Enables dynamic interactions such as dancing, gaming, and motion-triggered animations, enhancing user engagement and attraction.
    ★ Easy Installation & Maintenance
    Front Maintenance Design: Simplifies module replacement and repairs without disassembling the entire system.
    Adjustable Support Legs: Height-adjustable legs (8–15 cm) ensure quick leveling on uneven surfaces.
    ★ High brightness :
    SMD1415 Outdoor LEDs for Indoor Use: Utilizes industrial-grade SMD1415 LEDs, optimized for indoor environments to deliver stable brightness (1,500cd/sqm) and vivid colors.
    High Refresh Rate & Grayscale: Ensures smooth visuals and seamless interactions.

      •  Advantages

              • Unmatched Durability: Built to endure extreme pressure and impacts.

              • Seamless Interaction: Real-time responsiveness for engaging user experiences.

              • Cost-Effective Maintenance: Front-access design and modular components minimize downtime.

              • Bright & Stable Display: SMD1415 LEDs ensure consistent performance in indoor settings.



    Applications

        • Interactive gaming arenas, dance floors, and entertainment centers.

        • Retail displays, exhibitions, and immersive advertising.

        • Public spaces requiring high durability (e.g., malls, museums).



    Technical Specification

    •

     Item

     P2.604 interactive indoor led dance floor screen SMD1415(1R1G1B)
    Led Module Dimension Size （W）250*250（H）
    Pixel pitch 2.604mm
    Pixel Density 147456/ M2
    Drive type 1/32Scan
    LED specification SMD1415
    Pixel resolution （W）96*96（H）
    Max power 40W
    Panel current 8A
    Panel weight 0.68KG
    LED Cabinet LED cabinet size 500*500mm/500*1000mm
    Cabinet resolution 192*192/192*384dots
    Quantity of panel(pcs/sqm) 4/8
    Cabinet design Back access
    Material Steel
    Cabinet Weight（Kg） 18kg/set
    LED cabinet function interactive function
     Technical Parameter Driving device ICN2153 Constant current drive
    Refresh frequency 3840HZ
    Display color 4096*4096*4096
    Brightness 1500cd/M2
    IP Protection IP65 in front
    Best viewing angle Horizontal >140  Vertical>140
    Best viewing distance 4-50M
    Working temperature -20-+60
    Panel power supply 5V40A
    Screen power supply 220/110 VAC/50HZ+_10%
    Max power  <800W/m²
    Average power  350W/m²
    Power quantity 200W/4PCS
    Life span 100000Hours
    Communication distance <100M

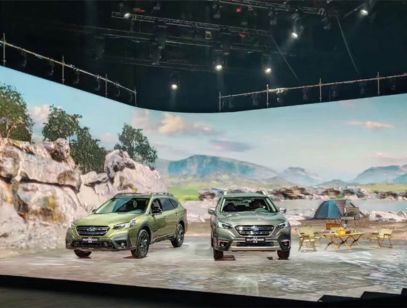

    Case
