P6.25 Interactive LED Dance Floor LED Display for Nightclub

 Tips：Click to zoom in

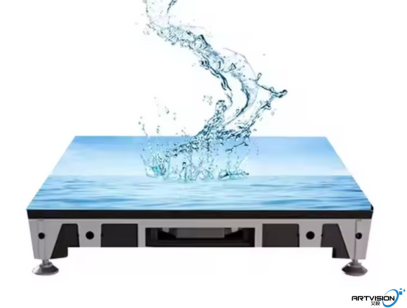

P6.25 led floor

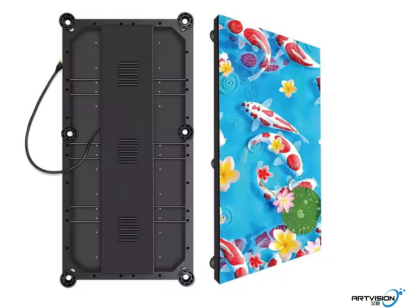

led floor cabinet

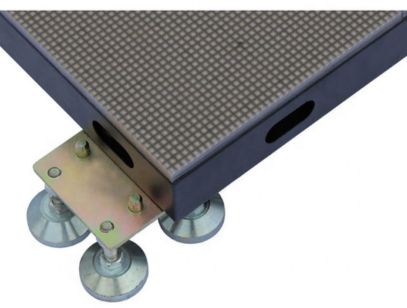

support leg

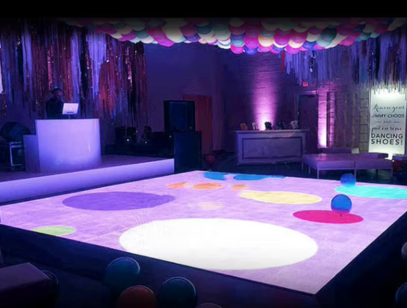

led dance floor

Overview

  • The  P6.25 Interactive LED Dance Floor LED Display is a robust, large-pixel-pitch display solution designed for high-impact visual and interactive experiences in both indoor and outdoor environments. Engineered for durability and scalability, this system is ideal for public spaces, stage performances, exhibitions, and advertising campaigns where long viewing distances and heavy foot traffic demand reliability and immersive engagement.

  • Key Features

    ★High Load Capacity & Impact Resistance :

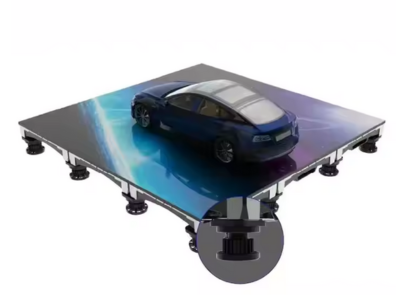

    Load Capacity: 1,000–2,000 kg/m², supporting activities like dancing, jumping, and even Car on it
    Reinforced Structure: Engineered with high-strength materials and shock-absorbing layers to withstand intense impacts and prolonged use.
    ★Built-in Sensing Technology
    Integrated Sensing Chips: Embedded inside the LED modules, the sensing chips interact with an external interaction controller to detect real-time movement.
    Interactive Experience: Enables dynamic interactions such as dancing, gaming, and motion-triggered animations, enhancing user engagement and attraction.
    ★ Easy Installation & Maintenance
    Front Maintenance Design: Simplifies module replacement and repairs without disassembling the entire system.
    Adjustable Support Legs: Height-adjustable legs (8–15 cm) ensure quick leveling on uneven surfaces.
    ★ High brightness :
    SMD1415 Outdoor LEDs for Indoor Use: Utilizes industrial-grade SMD1415 LEDs, optimized for indoor environments to deliver stable brightness (1,500cd/sqm) and vivid colors.
    High Refresh Rate & Grayscale: Ensures smooth visuals and seamless interactions.

      •  Advantages

              • Unmatched Durability: Built to endure extreme pressure and impacts.

              • Seamless Interaction: Real-time responsiveness for engaging user experiences.

              • Cost-Effective Maintenance: Front-access design and modular components minimize downtime.

              • Bright & Stable Display: SMD1415 LEDs ensure consistent performance in indoor settings.



    Applications

        • Interactive gaming arenas, dance floors, and entertainment centers.

        • Retail displays, exhibitions, and immersive advertising.

        • Public spaces requiring high durability (e.g., malls, museums).



    Technical Specification

    •

     Item

     P6.25 Interactive LED Dance Floor LED Display
    Led Module Dimension Size （W）250*250（H）
    Pixel pitch 6.25mm
    Pixel Density 25600/ M2
    Drive type 1/10Scan
    LED specification SMD1921
    Pixel resolution （W）80*80（H）
    Max power 40W
    Panel current 8A
    Panel weight 0.63KG
    LED Cabinet LED cabinet size 500*500mm/500*1000mm
    Cabinet resolution 160*160/160*320dots
    Quantity of panel(pcs/sqm) 4/8
    Cabinet design Back access
    Material Steel
    Cabinet Weight（Kg） 18kg/set
    LED cabinet function interactive function
     Technical Parameter Driving device ICN2153 Constant current drive
    Refresh frequency 3840HZ
    Display color 4096*4096*4096
    Brightness 1500cd/M2
    IP Protection IP65 in front
    Best viewing angle Horizontal >140  Vertical>140
    Best viewing distance 4-50M
    Working temperature -20-+60
    Panel power supply 5V40A
    Screen power supply 220/110 VAC/50HZ+_10%
    Max power  <800W/m²
    Average power  350W/m²
    Power quantity 200W/4PCS
    Life span 100000Hours
    Communication distance <100M
