High Resolution P3.91 Interactive LED Floor for Dance

 Tips：Click to zoom in
dance floor module
dance floor
P3.91 interactive led floor
led cabinet

Overview

  • The P3.91 Interactive LED Floor Tile Screen is a latest  solution designed for immersive interactive experiences. Combining high durability, advanced sensing technology, and exceptional visual performance, this product is ideal for gaming zones, dance floors, exhibitions, and commercial installations.

  • Key Features

    ★High Load Capacity & Impact Resistance :

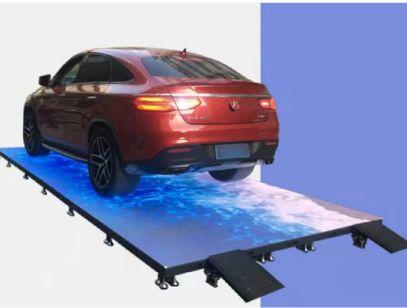

    Load Capacity: 1,000–2,000 kg/m², supporting activities like dancing, jumping, and even Car on it
    Reinforced Structure: Engineered with high-strength materials and shock-absorbing layers to withstand intense impacts and prolonged use.
    ★Built-in Sensing Technology
    Integrated Sensing Chips: Embedded inside the LED modules, the sensing chips interact with an external interaction controller to detect real-time movement.
    Interactive Experience: Enables dynamic interactions such as dancing, gaming, and motion-triggered animations, enhancing user engagement and attraction.
    ★ Easy Installation & Maintenance
    Front Maintenance Design: Simplifies module replacement and repairs without disassembling the entire system.

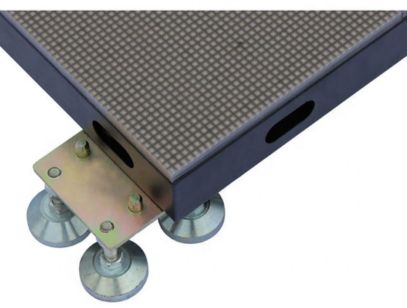

    Adjustable Support Legs: Height-adjustable legs (8–15 cm) ensure quick leveling on uneven surfaces.
    ★ High brightness :
    SMD1415 Outdoor LEDs for Indoor Use: Utilizes industrial-grade SMD1415 LEDs, optimized for indoor environments to deliver stable brightness (1,500cd/sqm) and vivid colors.
    High Refresh Rate & Grayscale: Ensures smooth visuals and seamless interactions.






            •


       Advantages

            • Unmatched Durability: Built to endure extreme pressure and impacts.

            • Seamless Interaction: Real-time responsiveness for engaging user experiences.

            • Cost-Effective Maintenance: Front-access design and modular components minimize downtime.

            • Bright & Stable Display: SMD1415 LEDs ensure consistent performance in indoor settings.



Applications

      • Interactive gaming arenas, dance floors, and entertainment centers.

      • Retail displays, exhibitions, and immersive advertising.

      • Public spaces requiring high durability (e.g., malls, museums).



Technical Specification

  •

 Item

 P3.91 LED Dance Floor Display SMD1415(1R1G1B)
Led Module Dimension Size （W）250*250（H）
Pixel pitch 3.91mm
Pixel Density 65410/ M2
Drive type 1/32Scan
LED specification SMD1415
Pixel resolution （W）64*64（H）
Max power 40W
Panel current 8A
Panel weight 0.65KG

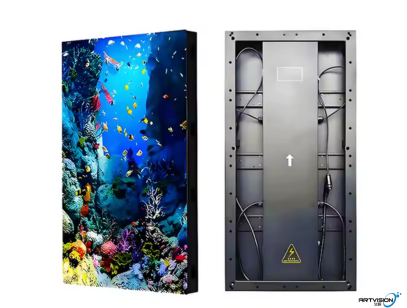

LED Cabinet LED cabinet size 500*500mm/500*1000mm
Cabinet resolution 128*128/128*256dots
Quantity of panel(pcs/sqm) 4/8
Cabinet design Back access
Material Steel
Cabinet Weight（Kg） 18kg/set
LED cabinet function interactive function
 Technical Parameter Driving device ICN2153 Constant current drive
Refresh frequency 3840HZ
Display color 4096*4096*4096
Brightness 1200cd/M2
IP Protection IP65 in front
Best viewing angle Horizontal >140  Vertical>140
Best viewing distance 4-50M
Working temperature -20-+60
Panel power supply 5V40A
Screen power supply 220/110 VAC/50HZ+_10%
Max power  <800W/m²
Average power  350W/m²
Power quantity 200W/4PCS
Life span 100000Hours
Communication distance <100M


Case
