Product Features

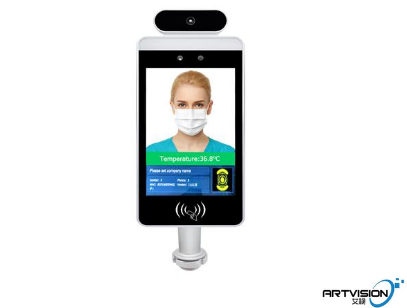

8” Facial Recognition Thermometer Display
✅ Face Recognition
✅ High temperature alarm
✅ Date statistics
✅ Safe and contactless
✅All day work
✅ Support multiple installation methods
✅ Support software redevelopment
✅ High temperature alarm
✅ Date statistics
✅ Safe and contactless
✅All day work
✅ Support multiple installation methods
✅ Support software redevelopment
Applications

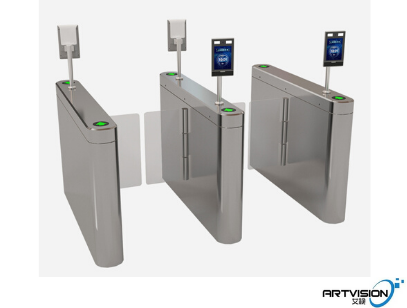

It can be used with access gates and attendance for communities,
office buildings, schools, hotels, scenic spots, transportation
hubs and other public service places.
Technical Index
8” Facial Recognition Thermometer Display|
Face recognition temperature measuring kiosk |
||
| Camera | Resolution | 2 million pixels |
| Type | Binocular wide dynamic camera | |
| Aperture | F2.4 | |
| Focusing distance | 50-150cm | |
| White balance | auto | |
| Photo flood light | LED and IR dual photo flood light | |
| Screen | Size | 8.0 inch IPS LCD screen |
| Resolution | 800×1280 | |
| Touch | Not supported (optional) | |
| Processor | CPU | RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core) |
| Storage | EMMC 8G | |
| Network module | Ethernet and wireless (WIFI) | |
| Audio | 2.5W / 4R speakers | |
| Interface | USB | 1 USB OTG, 1 USB HOST standard A port |
| Serial communication | 1 RS232 serial port | |
| Relay output | 1 door open signal output | |
| Wiegand | One Wiegand 26/34 output, one Wiegand 26/34 input | |
| Upgrade button | Support Uboot upgrade button | |
| Wired network | 1 RJ45 Ethernet socket | |
| Function | Credit card reader | None (optional IC card reader, ID card, ID card) |
| Face Detection | Supports detection and tracking of multiple people at the same time | |
| Face library | Up to 30,000 | |
| 1: N face recognition | Support | |
| 1: 1 face comparison | Support | |
| Stranger detection | Support | |
| Identify distance configuration | Support | |
| UI interface configuration | Support | |
| Upgrade remotely | Support | |
| Interface | Interfaces include device management, personnel / photo management, record query, etc. | |
| Deployment method | Support public cloud deployment, privatized deployment,LAN use, stand-alone use | |
|
Infrared thermal imaging module General parameters Packing list |
Temperature detection | Support |
| Temperature detection distance | 1 meter (optimal distance 0.5 meter) | |
| Temperature measurement accuracy | ≤ ±0.2℃ | |
| Temperature measurement range | 10℃~42℃ | |
| Thermal field of view | 32 X 32℃ | |
|
Visitors' temperature is normal and released directly |
Support | |
| Abnormal temperature alarm | Support (temperature alarm value can be set) | |
| General parameters | Power | DC12V（±10%） |
| Operating temperature | 0℃~60℃ | |
| Storage temperature | -20℃~60℃ | |
| Power consumption | 13.5W（Max） | |
| Installation method | Screwed by wall mount bracket | |

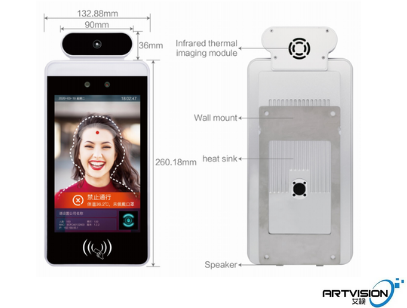

| Size | Standard：274.24*128*21.48（mm） | |
| IC card / ID card：296.18*132.88*25（mm） | ||
| Packing List | Machine * 1, power adapter * 1, manual * 1, certificate of conformity * 1 | |
